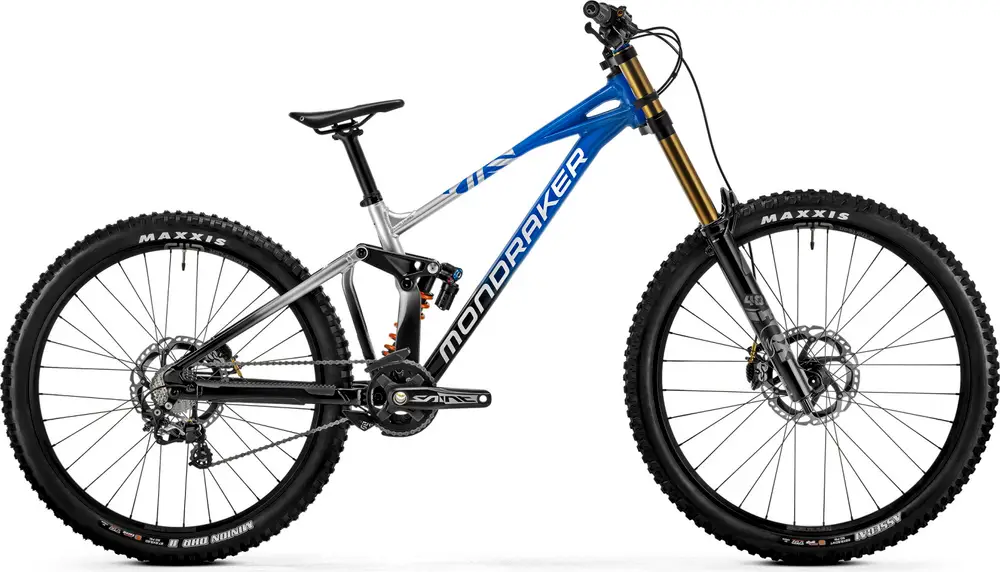

Mondraker SUMMUM RR Mullet 2024 Overview
Build
| Frame | Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit BB Standard: BSA, 83mm, Threaded |
|---|---|
| Fork | Fox 40 29 Float FIT GRIP X2 EVOL Factory Kashima, 203mm, air spring, 1-1/8 steerer tube, 20x110mm axle, offset 52mm. Settings: high and low-speed compression, high and low-speed rebound, air preload Travel: 203mm Spring Type: Air |
| Shock | Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings Travel: 200mm Spring Type: Coil |
| Bottom Bracket | Shimano 83mm |
| Headset | Onoff ZS56/ZS56, 1-1/8″, 1-1/8″ steerer tube, 42x30x7x45x45 ACB sealed bearings, geometry kit cups, external diameter 62mm |
| Stem | Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer |
| Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8 backsweep, 5 upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Saddle | Ergon SM10 DH Black |
| Seatpost | Onoff S3 DH Alloy, diameter 31.6mm, length 300mm Type: Rigid |
| Grips | Ergon GDH Team black |
Groupset
| Rear Derailleur | Shimano Saint RD-M820-SS, 10s, Shadow+, short cage |
|---|---|
| Front Derailleur | e*Thirteen Vario Compact Upper Slider,Alloy backplate,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider |
| Crank | Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm, Rings: 36T, aluminum, BCD 104 |
| Shifters | Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release |
| Chain | Shimano HG95, 10s |
| Brakes | Front: Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler, Rear: Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler Type: Hydraulic Disc |
| Brake Levers | Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust |
Wheels
| Rims | e*thirteen Grappler Race DH, IW29 29″ Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes |
|---|---|
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub |
| Tires | Front: Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Dissector 27”5×2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
