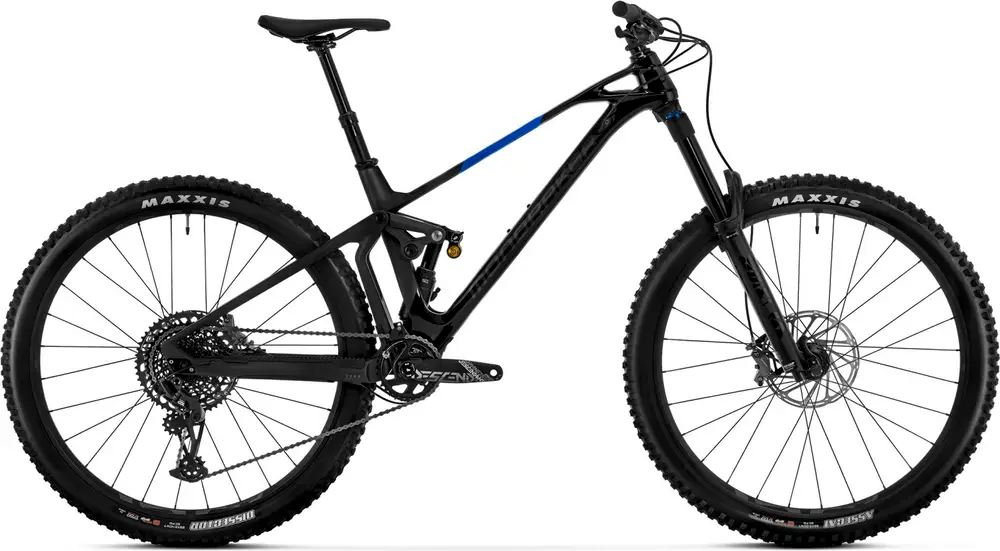

Mondraker SUPERFOXY CARBON R 2024 Overview
Build
| Frame | SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit BB Standard: BSA, 73mm, Threaded Color: Black / Carbon/blue |
|---|---|
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload Travel: 170mm Spring Type: Air |
| Shock | hlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings Travel: 160mm |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm, superboost |
| Headset | Onoff Titan tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41.8×30.5x8x45x45, bottom 51.9x40x8x45x45 |
| Stem | Onoff Sulfur FG 30mm 0, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm Type: Dropper |
| Grips | Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank | SRAM Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 565, Rings: 32T, CNC-machined alloy, X-SYNC 2 |
| Shifters | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Chain | SRAM NX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type: Hydraulic Disc |
| Brake Levers | SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust |
Wheels
| Rims | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
|---|---|
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Tires | Front: Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Dissector 29×2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
