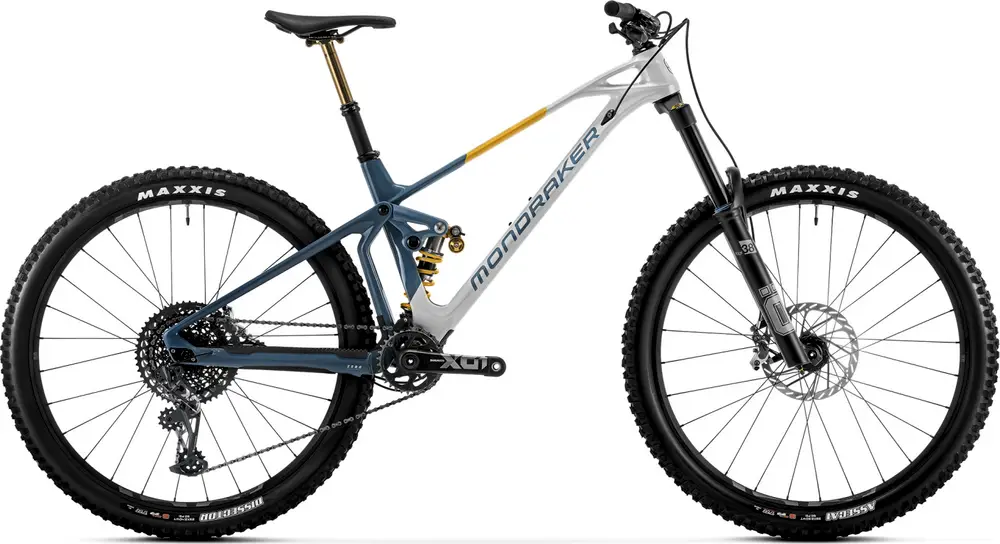

Mondraker SUPERFOXY CARBON RR 2024 Overview
Build
| Frame | SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included BB Standard: BSA, 73mm, Threaded Color: Gray / Blue/yellow |
|---|---|
| Fork | hlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber Travel: 170mm Spring Type: Air |
| Shock | hlins TTX 22M.2 NH Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings Travel: 160mm |
| Bottom Bracket | SRAM DUB BSA, sealed bearings, 73mm, superboost |
| Headset | Onoff Titan tapered for 1-1/8 to 1-1/2 head tube, ACB sealed bearings, top 41.8×30.5x8x45x45, bottom 51.9x40x8x45x45 |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Handlebar | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9 backsweep, 5 upsweep, 31.8mm barbore |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Seatpost | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm Type: Dropper |
| Grips | Onoff Desert, 1lock-on, 135mm |
Groupset
| Rear Derailleur | SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
|---|---|
| Crank | SRAM X01 Carbon Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 565, Rings: 32T, CNC-machined alloy, X-SYNC 2 |
| Shifters | SRAM Trigger X01 Eagle, 12s, X-Actuation 1:1 |
| Chain | SRAM GX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads Type: Hydraulic Disc |
| Brake Levers | SRAM Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
Wheels
| Rims | e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
|---|---|
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Tires | Front: Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Dissector 29×2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
