Mondraker SUPERFOXY XR 2024
Compare Wishlist

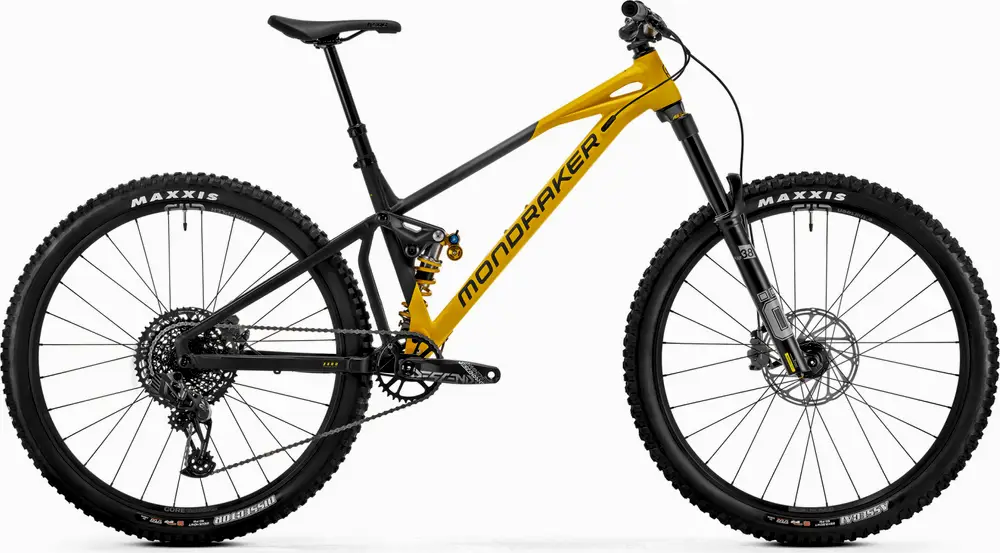

Mondraker Superfoxy XR 2024

Sku: 2024167317

US $2,852

Available in stock

*
Compare Wishlist
Brand:
Description

Mondraker SUPERFOXY XR 2024 Overview

Build

Frame

SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05

BB Standard: BSA, 73mm, Threaded

Fork

hlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Travel: 170mm

Spring Type: Air

Shock

hlins TTX 22M Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Travel: 160mm

Bottom Bracket

SRAM DUB BSA, sealed bearings, 73mm, superboost

Headset

Onoff ZS44/ZS56, 1-1/8″, 1.5″ head tube, ACB sealed bearings, top 42x30x7x45x45, bottom 52x40x8x45x45

Stem

Onoff S9 30mm 0, Full CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8 backsweep, 5 upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

Type: Dropper

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Groupset

Rear Derailleur

SRAM GX Eagle,12s

Crank

SRAM Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, All sizes: 170mm, CL 565, Rings: 32T, CNC-machined alloy, X-SYNC 2

Shifters

SRAM Eagle AXS Pod, 12s

Chain

SRAM NX Eagle, 12s, Powerlock

Brakes

Front: SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Type: Hydraulic Disc

Brake Levers

SRAM Maven Bronze, SwingLink and lever pivot bushings, tools-free reach adjust

Wheels

Rims

e*thirteen Grappler Core, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front Hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear Hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

Tires

Front: Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Dissector 29×2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
