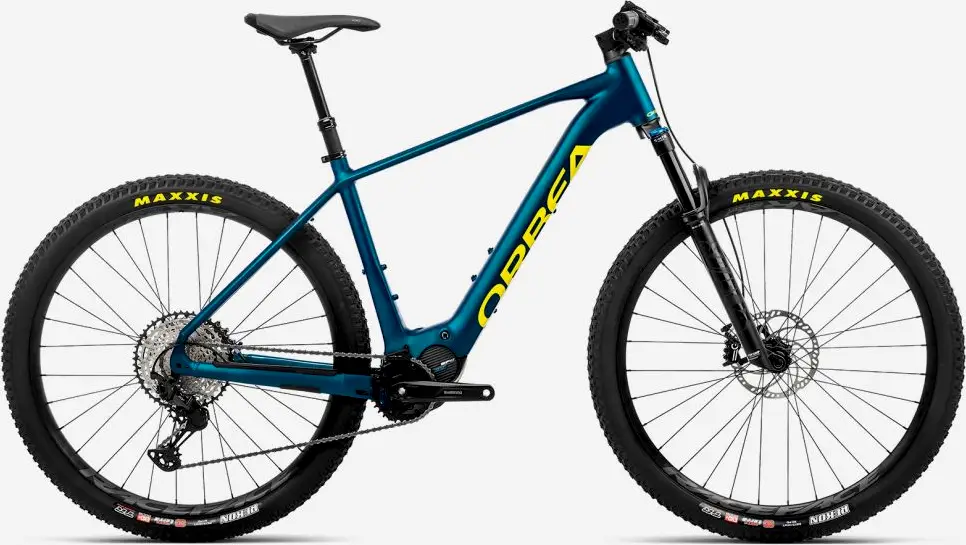

2023 Orbea URRUN 10 20mph A 29″ aluminum frame hardtail trail e-bike with high-end components.
Build
| Frame |
Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148×12, carrier and kickstand compatible BB Standard:Â STEPS, Press Fit Colors:Â Borealis Blue (Matt) – Luminous Yellow (Gloss); Glitter Anthracite (Gloss) – Black (Matt); Leo Orange (Gloss) – Black (Matt) |
|---|---|
| Fork |
Fox 34 Float Performance 120 Grip 3-Position QR15x110 E-Bike Optimized |
| Bottom Bracket |
STEPS, press-fit |
| Headset |
FSA 1-1/2″ Integrated Aluminium Cup |
| Stem |
Alloy forged, 35mm interface, -6º, ICR |
| Handlebar |
OC Mountain Control MC31, Rise20, Width 800 |
| Saddle |
Selle Royal Vivo 145x269mm |
| Seatpost |
OC Mountain Control MC20, 31.6mm, Dropper |
| Pedals |
VP-537 Black |
Groupset
| Rear Derailleur |
Shimano XT M8100 SGS Shadow Plus |
|---|---|
| Crank |
Alloy EP8 32t |
| Shifters |
Shimano XT M8100 |
| Cassette |
Shimano CS-M7100 10-51t 12-Speed |
| Chain |
Shimano M6100 |
| Chain Guide |
Orbea Rise chainguide |
| Brakes |
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
Wheels
| Rims |
Race Face AR 30c Tubeless Ready |
|---|---|
| Tires |
Maxxis Rekon 2.40″ 120 TPI 3CMaxxTerra Exo+ TLR |
Electric Components
| Motor |
Shimano EP801-RS |
|---|---|
| Battery |
Orbea Internal 540Wh (Optional 250 Wh Range Extender) |
| Remote |
EN600-L |
| Charger |
Orbea 2.Generation eBike Smart charger 42V/2-4A |
