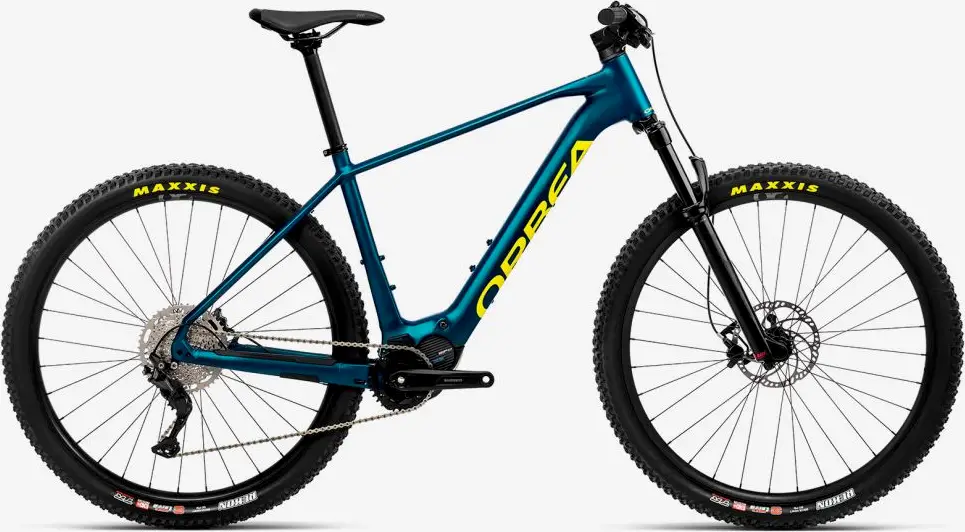

2023 Orbea URRUN 30 20mph A 29″ aluminum frame hardtail trail e-bike with upper mid-range components.
Build
| Frame | Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148×12, carrier and kickstand compatible BB Standard: STEPS, Press Fit Colors: Borealis Blue (Matt) – Luminous Yellow (Gloss); Glitter Anthracite (Gloss) – Black (Matt); Leo Orange (Gloss) – Black (Matt) |
|---|---|
| Fork | Marzocchi Bomber Z2 120 QR15x110 E-Bike Optimized |
| Bottom Bracket | STEPS, press-fit |
| Headset | FSA 1-1/2″ Integrated Aluminium Cup |
| Stem | Alloy forged, 35mm interface, -6º, ICR |
| Handlebar | OC Mountain Control MC31, Rise20, Width 800 |
| Saddle | Selle Royal Vivo 145x269mm |
| Seatpost | Alloy, 31.6mm, Setback 0 |
| Pedals | VP-537 Black |
Groupset
| Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus |
|---|---|
| Crank | Alloy EP8 32t |
| Shifters | Shimano Deore M4100 |
| Cassette | Shimano CS-M4100 11-46t 10-Speed |
| Chain | KMC e10 Turbo Silver |
| Chain Guide | Orbea Rise chainguide |
| Brakes | Magura MT30 Hydraulic Disc Easy Route Connection |
Wheels
| Rims | Alloy, Tubeless, 29″, 29c, 32H |
|---|---|
| Tires | Maxxis Rekon 2.40″ 120 TPI 3CMaxxTerra Exo+ TLR |
Electric Components
| Motor | Shimano EP801-RS |
|---|---|
| Battery | Orbea Internal 540Wh (Optional 250 Wh Range Extender) |
| Remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
