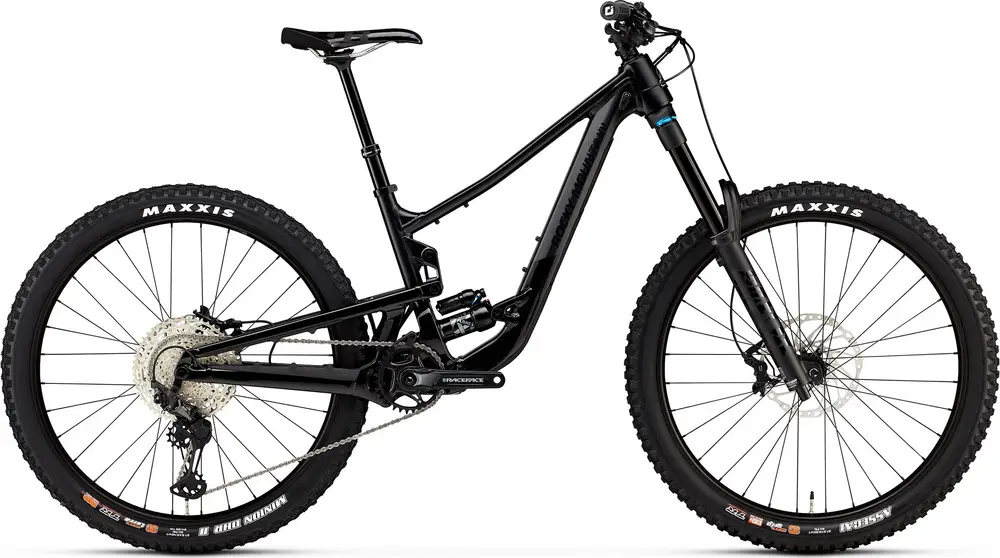

Rocky Mountain Altitude A50 Shimano 2024 Overview
Build
| Frame | FORM Alloy | Full Sealed Cartridge Bearings | Threaded BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4 Adjustable Geometry | 160mm Travel | FORM Alloy Rear Triangle BB Standard: BSA, 73mm, Threaded Colors: Green / Green; Black / Black |
|---|---|
| Fork | Fox 38 Float EVOL GRIP Performance Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset Travel: 170mm Spring Type: Air |
| Shock | Fox Float X Performance | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD – LG – XL = 230x60mm | Size-Specific tune in FAQ Travel: 160mm |
| Bottom Bracket | Shimano Threaded BBMT501-B |
| Headset | FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36×45 Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem | Rocky Mountain 35 AM | 5 Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain AM | 780mm Width | 38mm Rise | 9 Backsweep | 5 Upsweep | 35 Clamp |
| Saddle | WTB Solano Fusion Form 142 | Cromoly Rails |
| Seatpost | X Fusion Manic Composite 30.9mm | SM = 150mm | MD = 170mm | LG – XL = 200mm Type: Dropper |
| Grips | ODI Elite Pro Lock On |
Groupset
| Rear Derailleur | Shimano XT |
|---|---|
| Crank | Race Face Aeffect Cinch | 32T | 24mm Spindle | SM = 165mm | MD – XL = 170mm |
| Shifters | Shimano SLX |
| Cassette | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Brakes | Shimano SLX Trail 4 Piston | Metal Pads Type: Hydraulic Disc |
Wheels
| Rims | WTB ST i30 TOUGH TCS 2.0 | 32H | Tubeless Set Up | Sealant Incl |
|---|---|
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Front Hub | Novatec D791SB Sealed Boost 15mm |
| Rear Hub | Shimano XT Boost 148mm |
| Tires | Maxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready | Tubeless Set Up | Sealant Incl |
