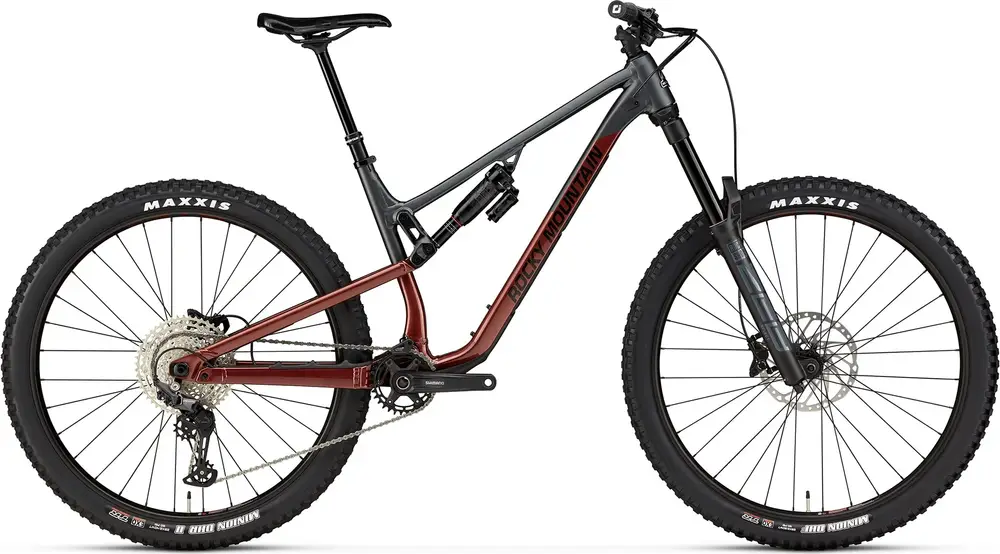

2023 Rocky Mountain Altitude Alloy 30 A 27.5″ / 29″ aluminum frame full suspension enduro bike with upper mid-range components.
Build
| Frame | FORM Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9 Adjustable Geometry | 2 Position Axle | 160mm Travel. FORM Alloy Rear Triangle Color: Red / Grey |
|---|---|
| Fork | RockShox Zeb Select RC 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset |
| Rear Shock | RockShox Super Deluxe Select+ | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210x55mm | MD – LG – XL = 230x60mm | Size-Specific tune in FAQ |
| Bottom Bracket | Shimano SM-BBMT500 |
| Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem | Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m |
| Handlebar | Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Saddle | WTB Volt 142 |
| Seatpost | Rocky Mountain Toonie Drop Composite 30.9mm | SM = 125mm | MD = 150mm | LG – XL = 170mm |
| Grips | ODI Elite Pro Lock On |
Groupset
| Rear Derailleur | Shimano Deore 12spd |
|---|---|
| Crank | Shimano Deore | 32T | 24mm Spindle | 170mm Crank Length |
| Shifters | Shimano Deore 12spd |
| Cassette | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Brakes | Shimano MT4120 4 Piston | Resin Pads | F:Shimano RT64 203mm | R:Shimano RT64 180mm |
Wheels
| Rims | WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready – Tape / Valves Incl |
|---|---|
| Spokes | 2.0 Stainless |
| Front Hub | Rocky Mountain Sealed Boost 15mm |
| Rear Hub | Novatec D462 Sealed Boost 148mm |
| Tires | F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready |
