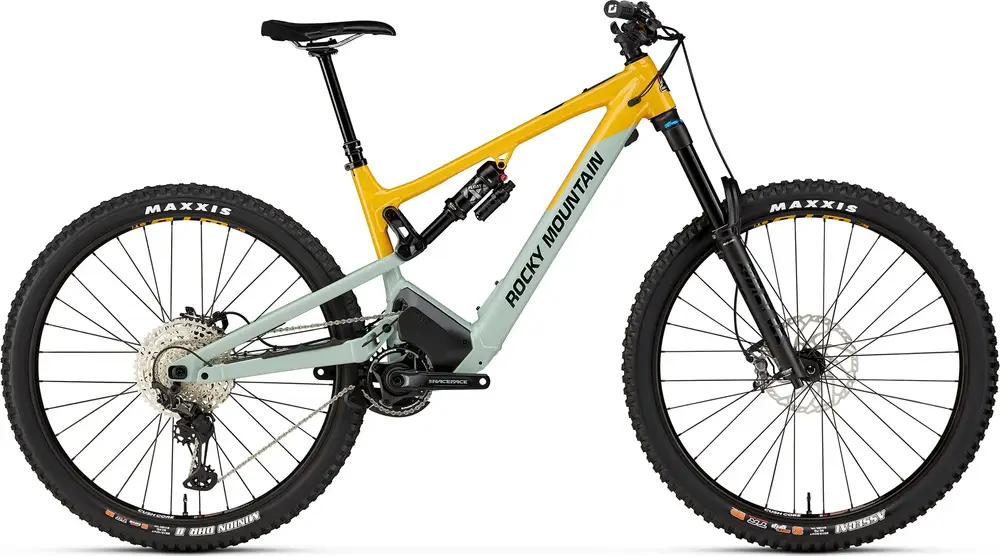

2023 Rocky Mountain Altitude Powerplay Alloy 70 A 29″ aluminum frame full suspension enduro e-bike with high-end components.
Build
| Frame | FORM Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4 Adjustable Geometry + Suspension Rate | 160mm Travel. FORM Alloy Rear Triangle Colors: Blue / Yellow; Black / Red |
|---|---|
| Fork | Fox 38 Float EVOL GRIP Performance Series 170mm | 44mm Offset |
| Rear Shock | Fox Float X Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230×62.5mm | Size-Specific tune in FAQ |
| Bottom Bracket | Shimano SM-BBMT500 |
| Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem | Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m |
| Handlebar | Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Saddle | WTB Volt Race 142 |
| Seatpost | Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG – XL = 175mm |
| Grips | ODI Elite Pro Lock On |
Groupset
| Rear Derailleur | Shimano XT |
|---|---|
| Crank | Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM – MD = 165mm | LG – XL = 170mm |
| Shifters | Shimano XT |
| Cassette | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Brakes | Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 203mm | R:Shimano RT66 203mm |
Wheels
| Rims | WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready – Tape / Valves Incl |
|---|---|
| Spokes | F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0 |
| Front Hub | Rocky Mountain Sealed Boost 15mm |
| Rear Hub | DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet |
| Tires | F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready |
Electric Components
| Motor | Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM – High Efficiency class 1 eMTB System | Designed in Canada |
|---|---|
| Battery | 720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A) |
| Remote | Rocky Mountain Micro Remote |
| Charger | Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4) |
