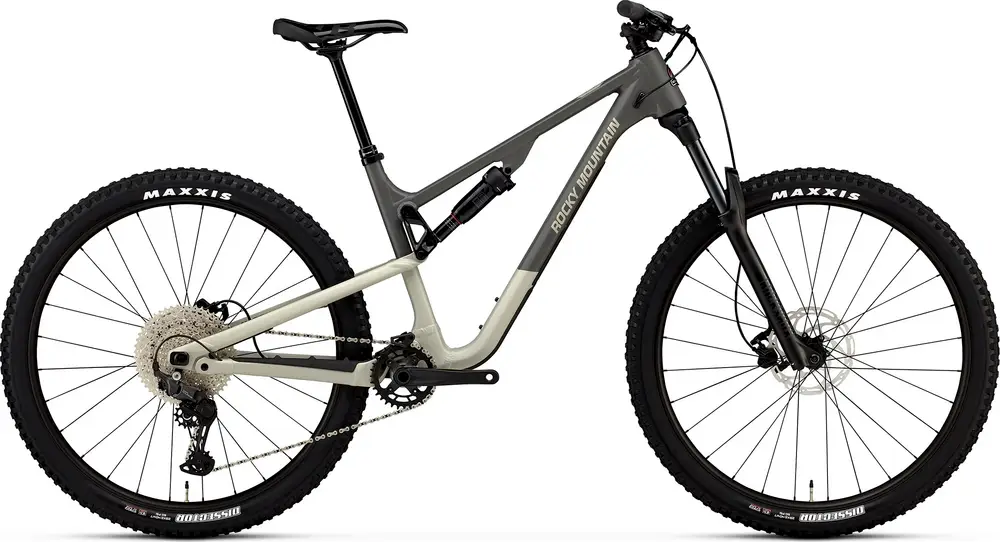

Rocky Mountain Instinct A10 Shimano 2024 Overview
Build
| Frame | FORM Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4 Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM Alloy Rear Triangle BB Standard: BB86/BB92, Press Fit Color: Grey / Beige |
|---|---|
| Fork | RockShox Recon Silver RL 150mm | 42mm Offset Travel: 150mm Spring Type: Air |
| Shock | RockShox Deluxe Select | Sealed Bearing Eyelet | 20x8mm F Hardware | XS – SM = 190x45mm | MD – LG – XL = 210×52.5mm | Size-Specific tune in FAQ Travel: 140mm |
| Bottom Bracket | Rocky Mountain Sealed BB92 – Shimano Compatible |
| Headset | FSA ZS56|66 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36×45 Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem | Rocky Mountain 31.8 AM | 5 Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain AM | 780mm Width | 25mm Rise | 9 Backsweep | 5 Upsweep | 31.8 Clamp |
| Saddle | WTB Volt 142 |
| Seatpost | X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD – LG = 170mm | XL = 200mm Type: Dropper |
| Grips | Rocky Mountain Lock On Light |
Groupset
| Rear Derailleur | Shimano CUES 11spd |
|---|---|
| Crank | Rocky Mountain Microdrive | 32T | SRAM 76mm BCD | 24mm Spindle | Crankarm Length: XS – SM = 165mm | MD – XL = 170mm |
| Shifters | Shimano CUES 11spd |
| Cassette | Shimano CUES 11spd 11-50T |
| Chain | KMC X11-1 |
| Brakes | Tektro HD-M275 | Shimano Pad Compatible Type: Hydraulic Disc |
Wheels
| Rims | Rocky Mountain TR30 Tubeless | 28H / Tubeless Compatible – Tape / Valves / Sealant Not Incl |
|---|---|
| Spokes | 2.0 Stainless |
| Front Hub | Shimano TC500 | 15x110m | 28H |
| Rear Hub | Shimano TC500 Boost 148mm | 28H |
| Tires | F: Maxxis Dissector 2.4 WT EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT EXO Tubeless Ready // |
