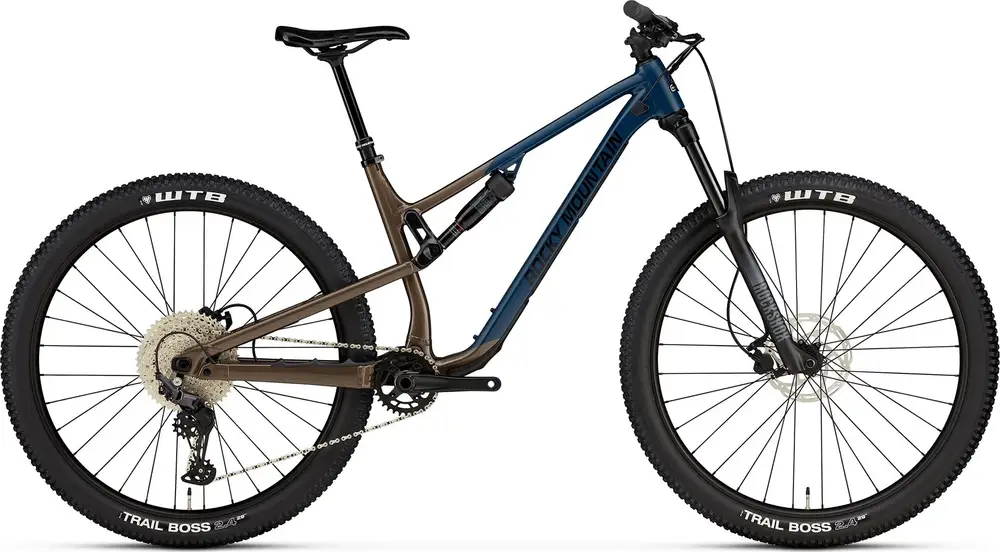

2023 Rocky Mountain Instinct Alloy 10 A 27.5″ / 29″ aluminum frame full suspension trail bike with upper mid-range components.
Build
| Frame |
FORM Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9 Adjustable Geometry | 2 Position Axle | 140mm Travel. FORM Alloy Rear Triangle BB Standard:Â BB86/BB92, Press Fit Color:Â Brown / Blue |
|---|---|
| Fork |
RockShox Recon Silver RL 150mm | 42mm Offset |
| Rear Shock |
RockShox Deluxe Select | Sealed Bearing Eyelet | 25x8mm F Hardware | XS – SM = 190x45mm | MD – LG – XL = 210×52.5mm | Size-Specific tune in FAQ |
| Bottom Bracket |
Rocky Mountain Sealed BB92 – Shimano Compatible |
| Headset |
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem |
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m |
| Handlebar |
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Saddle |
WTB Volt 142 |
| Seatpost |
Rocky Mountain Toonie Drop Composite 30.9mm | XS – SM = 125mm | MD = 150mm | LG – XL = 170mm |
| Grips |
Rocky Mountain Lock On Light |
Groupset
| Rear Derailleur |
Shimano Deore 11spd |
|---|---|
| Crank |
Rocky Mountain Microdrive | 32T |SRAM 76mm BCD | 24mm Spindle | Crank Length: XS = 165mm | SM – XL = 170mm |
| Shifters |
Shimano Deore 11spd |
| Cassette |
SunRace CSMS8 EA1 11-51T |
| Chain |
KMC X11-1 |
| Brakes |
Tektro HD-M275 | Shimano Pad Compatible | F:Tektro 180mm | R:Tektro 180mm |
Wheels
| Rims |
Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible – Tape / Valves / Sealant Not Incl |
|---|---|
| Spokes |
2.0 Stainless |
| Front Hub |
Rocky Mountain Sealed Boost 15mm |
| Rear Hub |
Novatec D462 Sealed Boost 148mm |
| Tires |
F: WTB Trail Boss Comp 29 x 2.4 // R: WTB Trail Boss Comp 29 x 2.4 |
