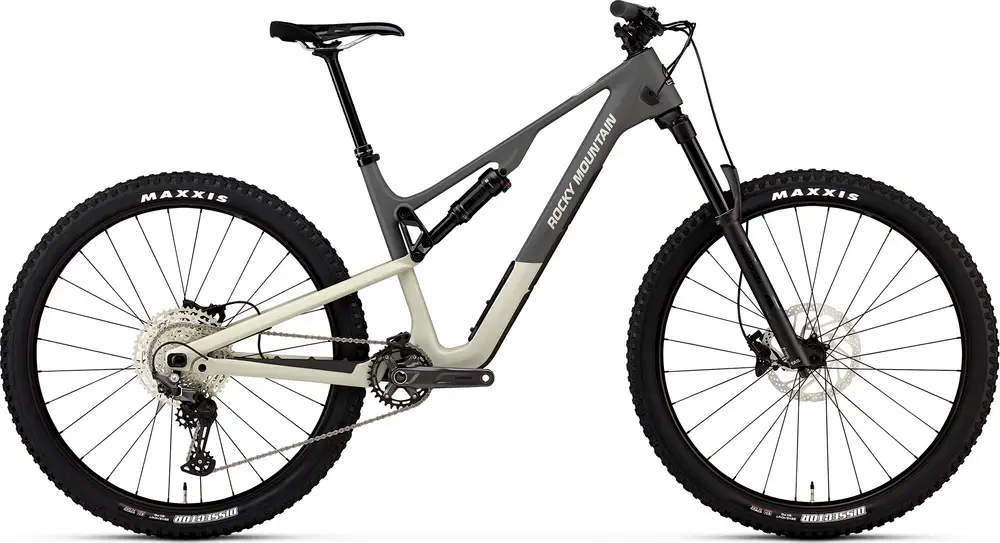

Rocky Mountain Instinct C30 Shimano 2024 Overview
Build
| Frame |
SMOOTHWALL Carbon | Penalty Box 2.0 Storage | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4 Adjustable Geometry | 2 Position Axle | 140mm Travel | SMOOTHWALL Carbon Rear Triangle Color:Â Grey / Beige |
|---|---|
| Fork |
Marzocchi Z2 Float EVOL Rail 150mm | 44mm Offset Travel:Â 150mm Spring Type:Â Air |
| Shock |
Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS – SM = 190x45mm | MD – LG – XL = 210×52.5mm | Size-Specific tune in FAQ Travel:Â 140mm |
| Bottom Bracket |
Shimano SM-BBMT500 |
| Headset |
FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36×45 Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem |
Rocky Mountain 31.8 AM | 5 Rise | All Sizes = 40mm |
| Handlebar |
Rocky Mountain AM | 780mm Width | 25mm Rise | 9 Backsweep | 5 Upsweep | 31.8 Clamp |
| Saddle |
WTB Volt Race 142 | Cromoly rails |
| Seatpost |
X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG – XL = 200mm Type:Â Dropper |
| Grips |
Rocky Mountain Lock On Light |
Groupset
| Rear Derailleur |
Shimano Deore 12spd |
|---|---|
| Crank |
Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS – SM = 165mm | MD – XL = 170mm |
| Shifters |
Shimano Deore 12spd |
| Cassette |
Shimano Deore 10-51T 12spd |
| Chain |
Shimano M6100 |
| Brakes |
Shimano MT4120 4 Piston | Resin Pads Type:Â Hydraulic Disc |
Wheels
| Rims |
WTB KOM Team i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl |
|---|---|
| Spokes |
2.0 Stainless |
| Front Hub |
Shimano TC500 | 15mm Boost |
| Rear Hub |
Shimano TC500 Boost 148mm |
| Tires |
Maxxis Minion DHF 2.5 WT EXO Tubeless Ready | Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready | Tubeless Set Up | Sealant Incl |
