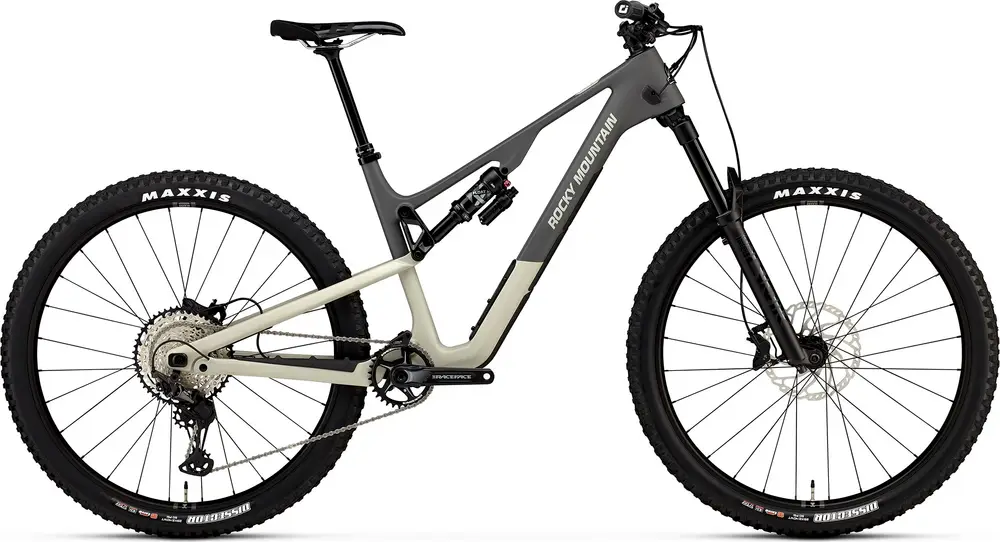

Rocky Mountain Instinct C50 Shimano 2024 Overview
Build
| Frame | SMOOTHWALL Carbon | Penalty Box 2.0 Storage | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4 Adjustable Geometry | 2 Position Axle | 140mm Travel | SMOOTHWALL Carbon Rear Triangle Colors: Brown / Yellow/black; Grey / Beige |
|---|---|
| Fork | RockShox Lyrik Select 150mm | Charger RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset Travel: 150mm Spring Type: Air |
| Shock | Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS – SM = 190x45mm | MD – LG – XL = 210×52.5mm | Size-Specific tune in FAQ Travel: 140mm |
| Bottom Bracket | Shimano SM-BBMT500 |
| Headset | FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36×45 Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem | Rocky Mountain 35 AM | 5 Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain AM | 780mm Width | 25mm Rise | 9 Backsweep | 5 Upsweep | 35 Clamp |
| Saddle | WTB Volt Race 142 | Cromoly rails |
| Seatpost | X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG – XL = 200mm Type: Dropper |
| Grips | ODI Elite Pro Lock On |
Groupset
| Rear Derailleur | Shimano XT |
|---|---|
| Crank | Race Face Aeffect Cinch | 32T | 24mm Spindle | Crankarm Length: XS – SM = 165mm | MD – XL = 170mm |
| Shifters | Shimano XT |
| Cassette | Shimano SLX 10-51T 12spd |
| Chain | Shimano M6100 |
| Brakes | Shimano MT6120 4 Piston | Metal Pads Type: Hydraulic Disc |
Wheels
| Rims | WTB KOM Team i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl |
|---|---|
| Spokes | 2.0 Stainless |
| Front Hub | Novatec D791SB Sealed Boost 15mm |
| Rear Hub | DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
| Tires | Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl |
