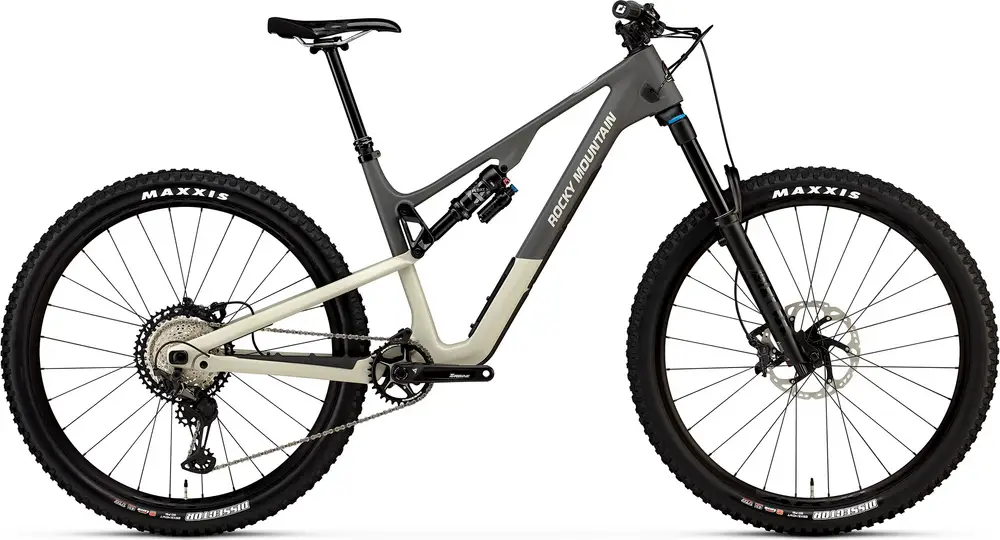

Rocky Mountain Instinct C70 Shimano 2024 Overview
Build
| Frame |
SMOOTHWALL Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4 Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL Carbon Rear Triangle BB Standard:Â BB86/BB92, Press Fit Colors:Â Grey / Beige; Brown / Yellow/black |
|---|---|
| Fork |
Fox 36 Float EVOL GRIP2 Performance Elite Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset Travel:Â 150mm Spring Type:Â Air |
| Shock |
Fox Float X Performance Elite | Sealed Bearing Eyelet | 20x8mm F Hardware | XS – SM = 190x45mm | MD – LG – XL = 210×52.5mm | Size-Specific tune in FAQ Travel:Â 140mm |
| Bottom Bracket |
Race Face BB92 30mm |
| Headset |
FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36×45 Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem |
Rocky Mountain 35 AM | 5 Rise | All Sizes = 40mm |
| Handlebar |
Rocky Mountain AM Carbon 780mm |
| Saddle |
WTB Volt Race 142 |
| Seatpost |
Race Face Turbine R (by Fox) Dropper 30.9mm | XS = 125mm | SM = 150mm | MD = 175mm | LG – XL = 200mm Type:Â Dropper |
| Grips |
ODI Elite Pro Lock On |
Groupset
| Rear Derailleur |
Shimano XT |
|---|---|
| Crank |
Race Face Turbine Cinch | 32T | 30mm Spindle | Crankarm Length: XS – SM = 165mm | MD – XL = 170mm |
| Shifters |
Shimano XT |
| Cassette |
Shimano XT 10-51T |
| Chain |
Shimano M8100 |
| Brakes |
Shimano XT Trail 4 Piston | Metal Pads Type:Â Hydraulic Disc |
Wheels
| Rims |
Race Face AR 30 | 28H / Tubeless Ready – Tape / Valves Incl |
|---|---|
| Spokes |
DT Swiss Competition 2.0/1.8/2.0 |
| Front Hub |
Rocky Mountain SL Sealed Boost 15mm |
| Rear Hub |
DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
| Tires |
F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // |
