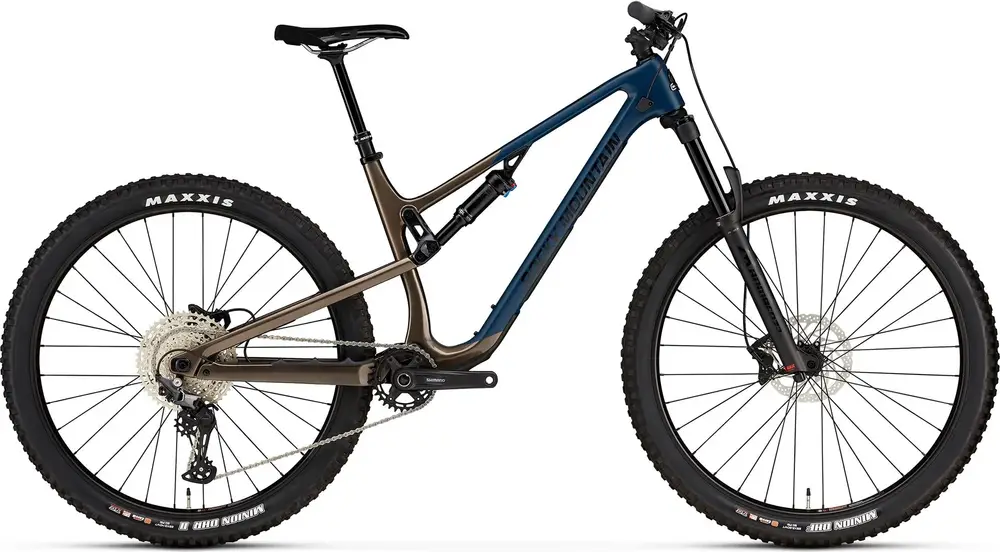

2023 Rocky Mountain Instinct Carbon 30 A 27.5″ / 29″ carbon frame full suspension trail bike with upper mid-range components.
Build
| Frame |
SMOOTHWALL Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9 Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL Carbon Rear Triangle Color:Â Brown / Blue |
|---|---|
| Fork |
Marzocchi Z2 Float EVOL Rail 150mm | 44mm Offset |
| Rear Shock |
Fox Float DPS Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | XS – SM = 190x45mm | MD – LG – XL = 210×52.5mm | Size-Specific tune in FAQ |
| Bottom Bracket |
Shimano SM-BBMT500 |
| Headset |
FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem |
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m |
| Handlebar |
Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Saddle |
WTB Volt Race 142 |
| Seatpost |
Rocky Mountain Toonie Drop Composite 30.9mm | XS – SM = 125mm | MD = 150mm | LG – XL = 170mm |
| Grips |
Rocky Mountain Lock On Light |
Groupset
| Rear Derailleur |
Shimano Deore 12spd |
|---|---|
| Crank |
Shimano Deore | 32T | 24mm Spindle | 170mm Crank Length |
| Shifters |
Shimano Deore 12spd |
| Cassette |
Shimano Deore 10-51T 12spd |
| Chain |
Shimano M6100 |
| Brakes |
Shimano MT4120 4 Piston | Resin Pads | F:Shimano RT30 180mm | R:Shimano RT30 180mm |
Wheels
| Rims |
WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready – Tape / Valves Incl |
|---|---|
| Spokes |
2.0 Stainless |
| Front Hub |
Rocky Mountain Sealed Boost 15mm |
| Rear Hub |
Novatec D462 Sealed Boost 148mm |
| Tires |
F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready |
