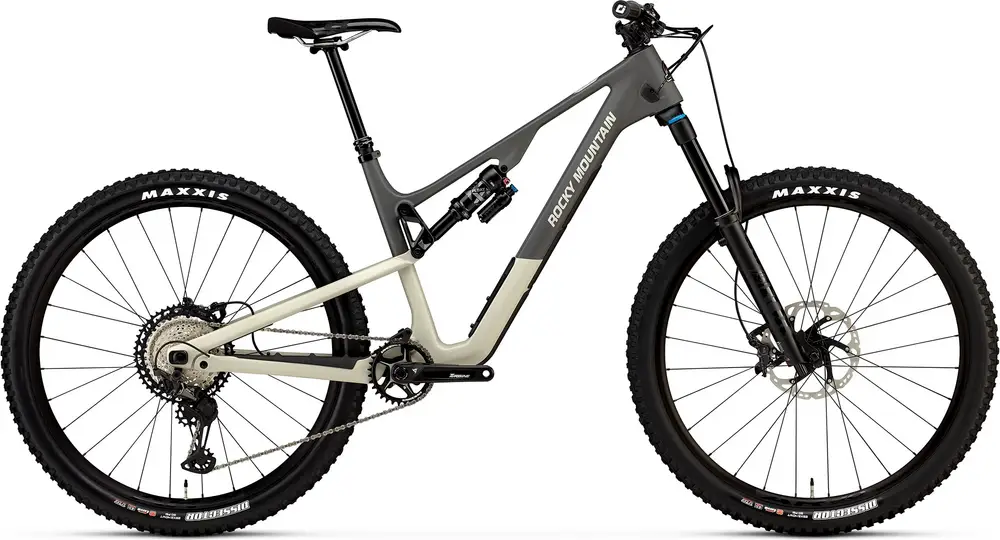

Rocky Mountain Instinct Carbon 70 2024 Overview
Build
| Frame | SMOOTHWALL Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4 Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL Carbon Rear Triangle BB Standard: BB86/BB92, Press Fit Hanger Standard: UDH Colors: Grey / Beige; Brown / Yellow/black |
|---|---|
| Fork | Fox 36 Float EVOL GRIP2 Performance Elite Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset Travel: 150mm Spring Type: Air |
| Shock | Fox Float X Performance Elite | Sealed Bearing Eyelet | 20x8mm F Hardware | XS – SM = 190x45mm | MD – LG – XL = 210×52.5mm | Size-Specific tune in FAQ Travel: 140mm |
| Bottom Bracket | Race Face BB92 30mm |
| Headset | FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36×45 Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem | Rocky Mountain 35 AM | 5 Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain AM Carbon 780mm |
| Saddle | WTB Volt Race 142 |
| Seatpost | Race Face Turbine R (by Fox) Dropper 30.9mm | XS = 125mm | SM = 150mm | MD = 175mm | LG – XL = 200mm Type: Dropper |
| Grips | ODI Elite Pro Lock On |
Groupset
| Rear Derailleur | Shimano XT |
|---|---|
| Crank | Race Face Turbine Cinch | 32T | 30mm Spindle | Crankarm Length: XS – SM = 165mm | MD – XL = 170mm |
| Shifters | Shimano XT |
| Cassette | Shimano XT 10-51T |
| Chain | Shimano M8100 |
| Brakes | Shimano XT Trail 4 Piston | Metal Pads Type: Hydraulic Disc |
Wheels
| Rims | Race Face AR 30 | 28H / Tubeless Ready – Tape / Valves Incl |
|---|---|
| Spokes | DT Swiss Competition 2.0/1.8/2.0 |
| Front Hub | Rocky Mountain SL Sealed Boost 15mm |
| Rear Hub | DT Swiss 370 Boost 148mm | 18T Star-Ratchet |
| Tires | F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // |
