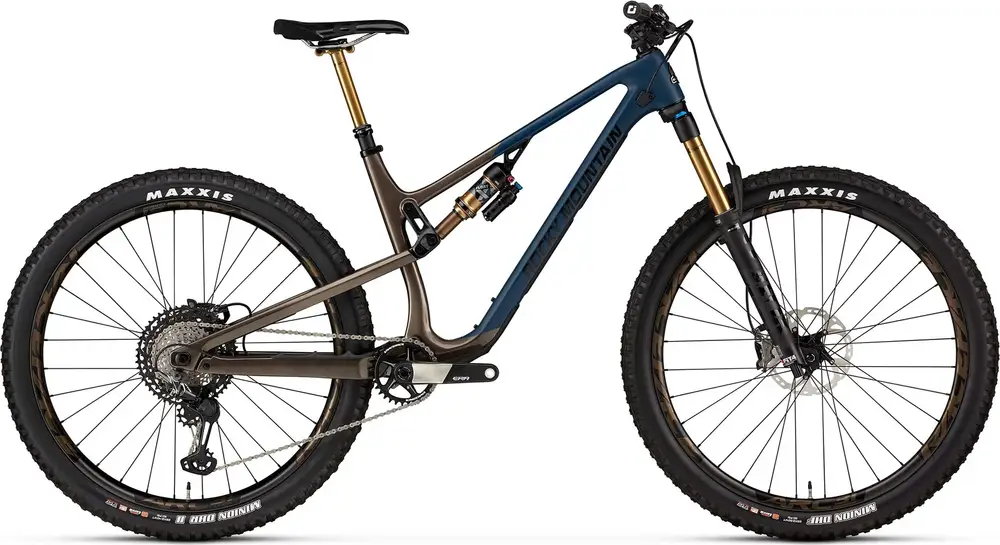

2023 Rocky Mountain Instinct Carbon 90 A 27.5″ / 29″ carbon frame full suspension trail bike with ultra high-end components.
Build
| Frame |
SMOOTHWALL Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-9 Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL Carbon Rear Triangle BB Standard:Â BB86/BB92, Press Fit Color:Â Brown / Blue |
|---|---|
| Fork |
Fox 36 Float EVOL FIT4 Factory Series 150mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Rear Shock |
Fox Float X Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | XS – SM = 190x45mm | MD – LG – XL = 210×52.5mm | MD – LG – XL = 210×52.5mm | Size-Specific tune in FAQ |
| Bottom Bracket |
Race Face BB92 30mm |
| Headset |
FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5″ Crown Race |
| Stem |
Rocky Mountain 35 CNC | 0° Rise | All Sizes = 40m |
| Handlebar |
Race Face Next R | 780mm Width | 20mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp |
| Saddle |
WTB Volt Race 142 |
| Seatpost |
Fox Transfer Factory Series 30.9mm | XS – SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm |
| Grips |
ODI Elite Pro Lock On |
Groupset
| Rear Derailleur |
Shimano XTR |
|---|---|
| Crank |
Race Face Era Cinch | 32T | 30mm Spindle | Crank Length = 170mm |
| Shifters |
Shimano XTR |
| Cassette |
Shimano XTR 12s 10-51T |
| Chain |
Shimano XTR 12s |
| Brakes |
Shimano XTR Trail 4 Piston | IceTec Metal Pads | F:Shimano RT86 180mm | R:Shimano RT86 180mm |
Wheels
| Rims |
Race Face ARC Carbon 31 | 32H | Tubeless Ready – Tape / Valves Incl |
|---|---|
| Spokes |
DT Swiss Competition 2.0/1.8/2.0 |
| Front Hub |
Rocky Mountain Sealed Boost 15mm |
| Rear Hub |
DT Swiss 350 Boost 148mm | 36T Star-Ratchet |
| Tires |
F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready |
