Build
| Frame |

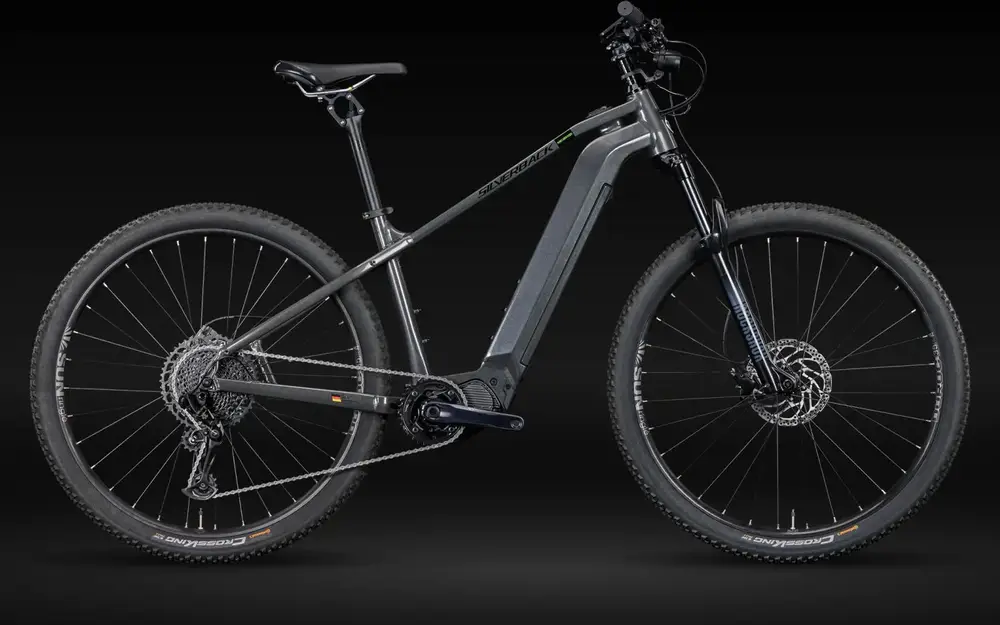

Aluminium E – MTB frame designed to take a 720wh battery and Shimano STEPs EP8, E8000 or E7000 motor. The geometry is designed for an all day easy trail ride or a commute to your preferred destination. This frame has tyre clearance for 29 x 2,6in tyres. Sizes range from S – XL BB Standard:Â STEPS, Press Fit Tire Clearance:Â 2.6in Color:Â Graphite Grey Metallic |
|---|---|
| Fork |
RockShox Recon Silver 120 mm Crown Adjust 29in, 15X110mm, Solo Air 120mm Travel:Â 120mm Spring Type:Â Air |
| Bottom Bracket |
STEPS, press-fit |
| Headset |
Token TK035A-15 Sealed Bearing |
| Stem |
SURFACE alloy High-Rise |
| Handlebar |
SURFACE Alloy, Dia:31.8mm, Backsweep:9, Rise 5mm |
| Saddle |
SURFACE E-bike saddle |
| Seatpost |
SURFACE 30,9 lightweight Alloy Type:Â Rigid |
| Grips |
SBC Lockon Grip |
Groupset
| Rear Derailleur |
SRAM NX Eagle, 50T Max |
|---|---|
| Crank |
Shimano FC-EM600 |
| Shifters |
R: SRAM SX Eagle Shifter |
| Cassette |
SRAM SX Eagle, 11-50T |
| Chain |
SRAM SX Eagle, 12 Speed |
| Brakes |
F: Shimano BL-MT200, Hydraulic Disc Brake, Resin Pads Type:Â Hydraulic Disc |
Wheels
| Rims |
F: SUNringl Duroc 35, STR Tubeless, 32mm Internal Width |
|---|---|
| Front Hub |
F: Shimano HB-MT410-B Front Hub, 32H, 15mm Thru-Axle, 110mm OLD |
| Rear Hub |
F: Shimano HB-MT410-B Front Hub, 32H, 15mm Thru-Axle, 110mm OLD |
| Tires |
F: Maxxis Forekaster 29×2.35in, 120TPi, EXO, Tubeless |
| Disc Rotors |
F: Shimano SM-RT10 180mm |
Electric Components
| Motor |
Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque |
|---|---|
| Battery |
Darfon 720Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight |
| Display |
Shimano SC-7000, 31.8mm |
| Charger |
Darfon Smart Plus, 100-240V, 4A, EU use |
