Build

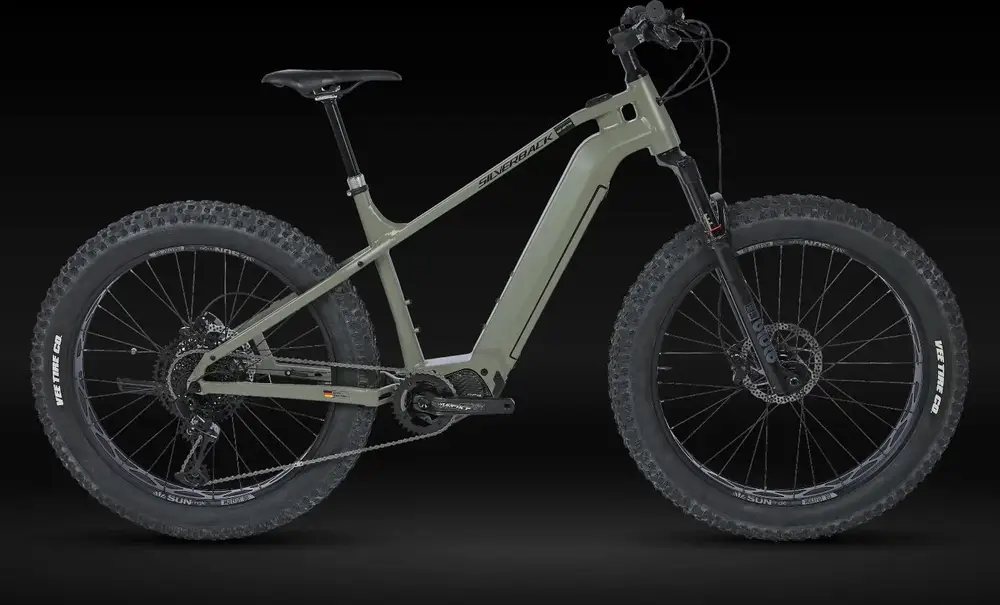

| Frame | Aluminium E – MTB frame, 720wh battery compatible. Shimano STEPs EP8, E8000 or E7000 compatible motor. The geometry is designed for the typical Fat Bike enthusiast making the ride experience feel comfortable on those long rides. This frame has tyre clearance for 26 x 4,8in tyres. Sizes range from S – XL BB Standard: STEPS, Press Fit Tire Clearance: 4.8in Color: Military Green |
|---|---|
| Fork | Manitou Mastodon Comp,Air Suspension fork,1.5in Tapered Steerer, 120 mm Travel, 15X150mm Travel: 120mm Spring Type: Air |
| Bottom Bracket | STEPS, press-fit |
| Headset | Token TK035A-15 Sealed Bearing |
| Stem | SURFACE Alloy Stem, 31.8mm, Rise 6, with stainless steel bolts |
| Handlebar | SURFACE Alloy Handlebar, Dia:31.8mm, Backsweep:9, Rise 5mm |
| Saddle | SURFACE E-BIKE saddle, Black, Cromo Rails |
| Seatpost | SURFACE Dropper Post with remote lock out, 30,9mm Type: Dropper |
| Grips | SBC Lockon Grip |
Groupset
| Rear Derailleur | SRAM NX Eagle, 12 Speed, 50T |
|---|---|
| Crank | Alloy Fat Bike Crank, Anodized Black, EP8 |
| Shifters | L: NIL; R: SRAM SX Eagle Trigger Shifter |
| Cassette | SRAM SX Eagle, 11-50T |
| Chain | SRAM SX Eagle, 12 Speed |
| Brakes | F: Shimano BR-MT410, Resin Pads Type: Hydraulic Disc |
Wheels
| Rims | F: SUNringl Muleft 80SL, Tubeless Ready |
|---|---|
| Front Hub | F: SUNringl SRC 150×15, 6 Bolt |
| Rear Hub | F: SUNringl SRC 150×15, 6 Bolt |
| Tires | F: VEE Tire Bulldozer 26×4.7in, Foldable, Tubeless Ready, 72TPI |
| Disc Rotors | F: Shimano SM-RT10 180mm Rotor, 6-Bolt |
Electric Components
| Motor | Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque |
|---|---|
| Battery | Darfon 720Wh, 36V, 20Ah Li-Ion Battery, 3.8Kg Weight |
| Display | Shimano SC-EM800 Cycle Computer, 31.8mm |
| Charger | Darfon Smart Plus Battery Charger, 100-240V, 4A, EU use |
