Build
| Frame |

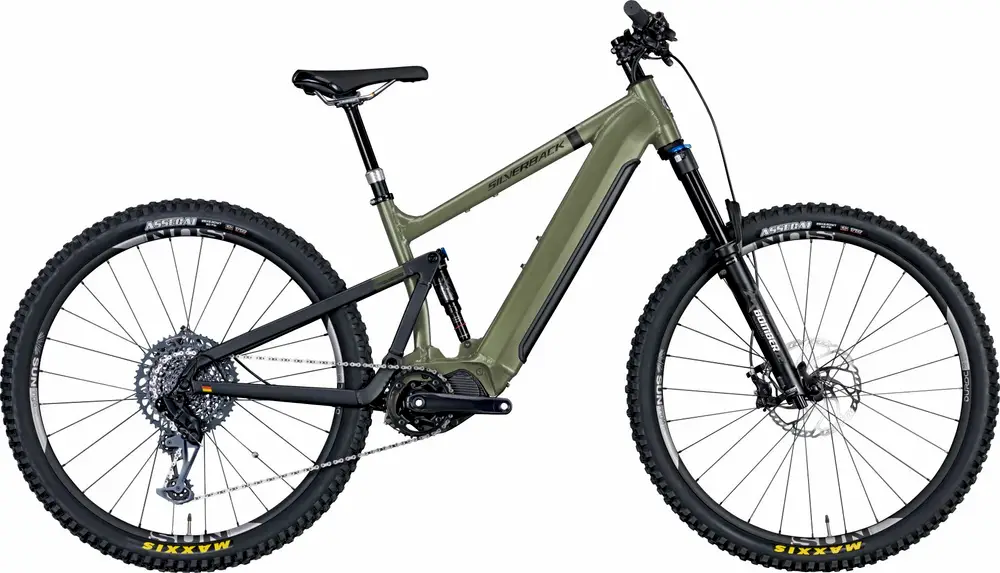

Alloy Dual Suspension with Shimano EP8 motor and Darfon 720Wh internal battery. Trail/Enduro frame with 160mm front and 145mm single-pivot rear travel. Designed to be light, nimble and easy to maintain. Tire Clearance:Â 2.6in Color:Â Military Green |
|---|---|
| Fork |
Rockshox 35 Silver 160 mm Tapered, Thru Axle Travel:Â 160mm |
| Shock |
RockShox Deluxe Select+ RT, Linear Air Can 0 Neg, 3 Pos Tokens, Linear Reb-Low Comp Tune, 320LB Threshold, Trunnion Standard Travel:Â 145mm |
| Headset |
TOKEN TK1556SP S-Box Headset (IS52/28.6 l IS52/40) |
| Stem |
SURFACE Trail alloy, 35mm, Rise 7 |
| Handlebar |
SURFACE alloy Trail 35mm, Backsweep 6, Rise 12mm |
| Saddle |
SURFACE E-BIKE |
| Seatpost |
SURFACE Dropper Post with Lever, 30.9mm Type:Â Dropper |
| Grips |
SUFACE Double Density Lock-On |
Groupset
| Rear Derailleur |
SRAM SX Eagle, 50T Max |
|---|---|
| Crank |
Shimano FC-EM600 |
| Shifters |
R: SRAM SX Eagle |
| Cassette |
SRAM SX Eagle, 11-50T |
| Chain |
SRAM SX Eagle |
| Brakes |
Shimano MT200 2-Piston Hydraulic Disc Type:Â Hydraulic Disc |
Wheels
| Rims |
F: SUNringl Duroc 35, STR Tubeless ready, 32mm Internal Width |
|---|---|
| Front Hub |
F: Shimano Deore MT410, Boost, 110x15mm, 6 Bolt |
| Rear Hub |
F: Shimano Deore MT410, Boost, 110x15mm, 6 Bolt |
| Tires |
F: Minion DHF, 29×2.60WT, EXO TR, Dual |
| Disc Rotors |
F: Shimano RT26, 203 mm |
Electric Components
| Motor |
Shimano EP8 Drive Unit, Mid-Position, 25km/h, 85N.m Torque |
|---|---|
| Battery |
Darfon 720Wh, 36V, 20Ah Li-Ion, 3.8Kg Weight |
| Display |
Shimano SC-E7000, 35.0mm |
| Charger |
Darfon Smart Plus, 100-240V, 4A, EU use |
