Build
| Frame |

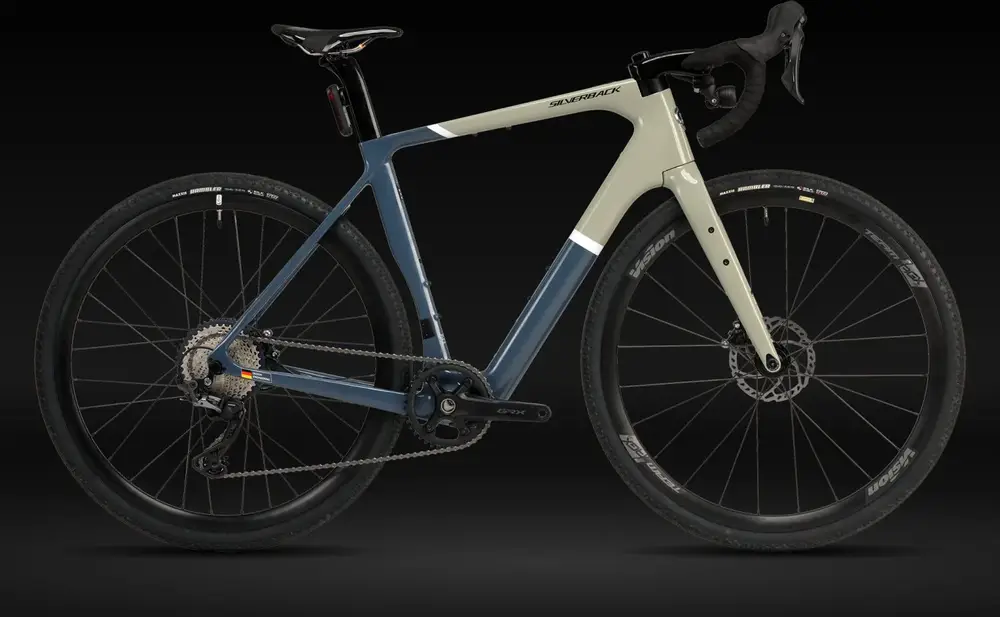

Carbon Fibre Road & Gravel e-Bike frame. Aerodynamically optimized with integrated motor and Internal Battery. 700Cx40C compatible. BB Standard:Â BB86/BB92, Press Fit Tire Clearance:Â 40c Color:Â Ghost Grey / Navy Blue |
|---|---|
| Fork |
700C Carbon Fork, M12x100mm, Full Internal Cable Routing in Steerer |
| Bottom Bracket |
FSA PF30 to BB30, PF 30 BB386 EVO |
| Headset |
Semi-Integrated |
| Stem |
Surface, Carbon with internal routing, 31.8mm. Rise: 6.5 |
| Handlebar |
Surface, Carbon, internal routing, Dia: 31.8mm, Reach: 77mm, Drop: 128mm, Flare 16 |
| Saddle |
Surface Race, Steel Rails |
| Seatpost |
Surface, Carbon, 42×29.3mm Type:Â Rigid |
| Pedals |
Not Included |
| Grips |
Surface Handlebar Wrap, Silicone, Plug with Expander Bolt |
Groupset
| Rear Derailleur |
Shimano GRX 11-Speed |
|---|---|
| Front Derailleur |
N/A |
| Crank |
Shimano GRX 40T Chainring, Crank Length: 175mm |
| Shifters |
Shimano GRX Hydraulic Brake and Shifter w/ Caliper |
| Cassette |
Shimano ULTEGRA 11-28T |
| Chain |
Shimano CN-HG701-11 11-Speed |
| Brakes |
Included in Brakeset or Shifter Type:Â Hydraulic Disc |
Wheels
| Rims |
Front: SURFACE, 700C, 21mm Internal Width and 30mm Deep, 28H |
|---|---|
| Front Hub |
Front: Shimano RD470, 100 OLD for 12mm Thru-axle, 6 Bolt, 28H |
| Rear Hub |
Front: Shimano RD470, 100 OLD for 12mm Thru-axle, 6 Bolt, 28H |
| Tires |
Schwalbe G-One Allround, 700x35C,TLE |
| Disc Rotors |
Shimano RT76 160mm, 6 bolt |
Electric Components
| Motor |
FSA System HM 1.0 250W Rear Hub-Motor, 32km/h, Torque: 42Nm |
|---|---|
| Battery |
FSA System HM 1.0 250Wh Battery, 7Ah Li-Ion, Weight: 1.5kg |
| Display |
N/A |
| Charger |
FSA System HM 1.0 Charger |
