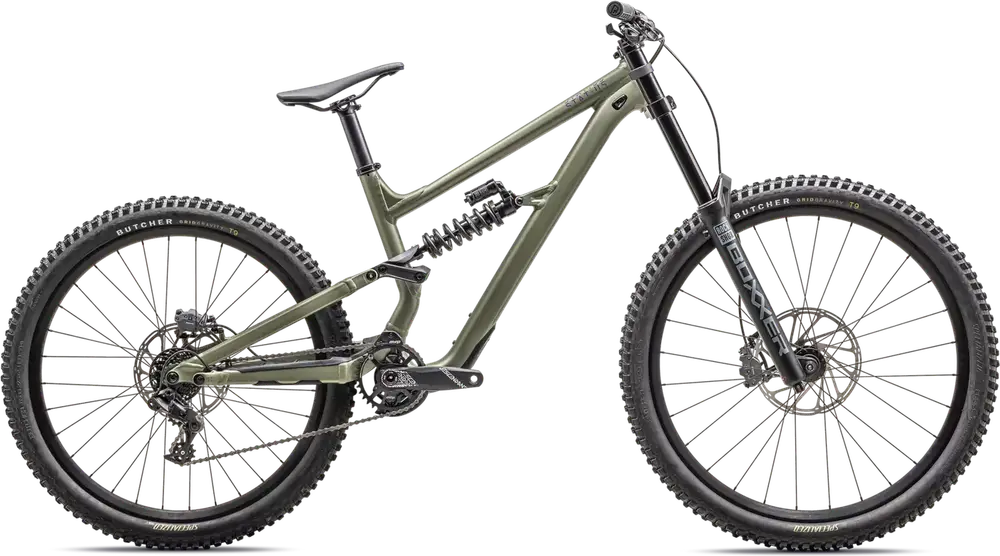

Specialized STATUS 2 170 DH 2024 Overview
Build
Frame |
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel BB Standard:Â BSA, 73mm, Threaded Hanger Standard:Â UDH Color:Â Satin Metallic Spruce / Purple Haze |
---|---|
Fork |
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel Travel:Â 180mm Spring Type:Â Air |
Shock |
RockShox Super Deluxe Select Coil, external rebound adjust, hydraulic bottom out, 230×62.5mm Travel:Â 170mm Spring Type:Â Coil |
Bottom Bracket |
SRAM DUB Threaded Wide |
Stem |
Descendant 35mm Direct Mount Stem, 50mm length |
Handlebar |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S2: 780mm, S3-S5: 800mm |
Saddle |
Body Geometry Henge DH, hollow Cro-Mo rails, 130mm |
Seatpost |
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm Type:Â Rigid |
Grips |
Deity Lockjaw |
Groupset
Rear Derailleur |
SRAM GX DH, 7-speed, trigger |
---|---|
Crank |
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm |
Shifters |
SRAM GX DH, trigger, 7-speed |
Cassette |
SRAM GX DH, 7-speed, 11-24t |
Chain |
SRAM PC1110 w/ Powerlink |
Brakes |
Front: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm, Rear: SRAM DB MVN BRZ SJ BDPA DIR Type:Â Hydraulic Disc |
Wheels
Rims |
Roval Alloy DH, 28mm internal width, tubeless ready. Front: 29″, 28H, Rear: 27.5″, 32H |
---|---|
Spokes |
DT Swiss Industry |
Front Hub |
Alloy, sealed cartridge bearings, 20x110mm, 28h |
Rear Hub |
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
Tires |
Front: Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 29×2.3″, Rear: Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 27.5×2.3″ |
