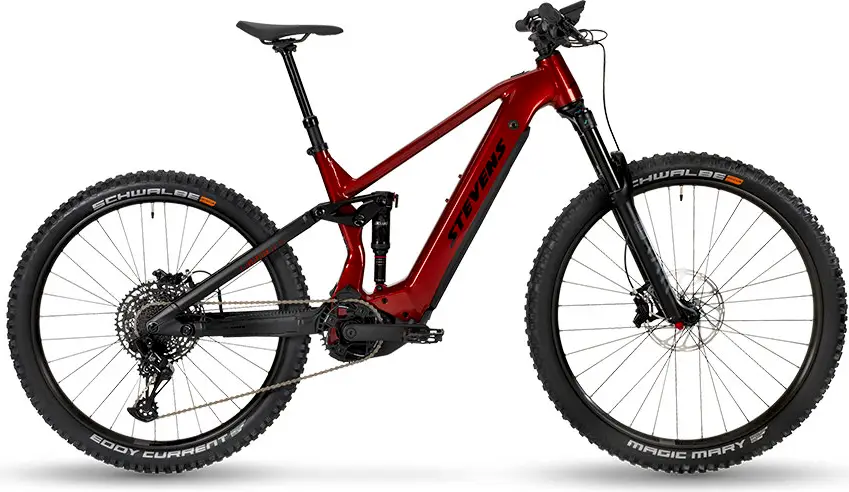

Build
Frame |
Aluminium 6061 TB, O.L.D.: 148 mm, Brake: postmount disc 7in, BB: Bosch, Cable routing: internal BB Standard:Â Bosch, Press Fit Color:Â Pearl Red |
---|---|
Fork |
Rock Shox Yari RC, Travel: 150 mm, Air suspension, Tapered Steerer 1 1/8in – 1.8”, O.L.D.: 110 mm, Brake: postmount disc 7in Travel:Â 150mm Spring Type:Â Air |
Bottom Bracket |
Bosch, press-fit |
Headset |
Acros Blocklock Taper 1 1/8in-1.8in, Upper bearing cup: ZS56/28.6, Lower bearing cup: ZS66/46 |
Stem |
Oxygen E-Scorpo, Handlebar clamp: 35 mm, Angle: 5 |
Handlebar |
Oxygen E-Scorpo, Width: 780 mm, Backsweep: 9, Rise: 25 mm, Clamp: 35 mm |
Saddle |
Fizik Terra Alpaca |
Seatpost |
Oxygen E-Scorpo DPR-E, Travel: 100 mm | 125 mm | 150 mm, Remote Lockout, Length: 340 mm | 390 mm | 440 mm, Diameter: 30.9 mm, Insertion depth: 100 mm Type:Â Dropper |
Pedals |
MTB Alu Flatpedal Reflex |
Groupset
Rear Derailleur |
SRAM NX Eagle, 12-speed, Type-3 Roller Bearing Clutch, Cage Lock, Total capacity: 40 T |
---|---|
Crank |
Oxygen E-Scorpo, BB type: Bosch / ISIS, Chainguard |
Shifters |
SRAM NX Eagle Trigger, SL-NX1-PA-B1, 12-speed |
Cassette |
SRAM PG 1230 Eagle, 12-speed, Combination: 11-13-15-17-19-22-25-28-32-36-42-50 T |
Chain |
SRAM SX Eagle |
Brakes |
SRAM Code R, Hydraulic disc brake, 4 pistons Type:Â SRAM Code R Hydraulic Disc |
Brake Levers |
SRAM Code R, tool-free adjustment |
Wheels
Rims |
Oxygen RM-E35, ETRTO: 35 x 622 |
---|---|
Front Hub |
Strummer CLTP, Axle: QR15x110 mm |
Rear Hub |
Strummer CL-42-17, Axle: QR12x148 mm |
Tires |
Schwalbe Magic Mary Evolution, Tire size: 65-622, Super Trail, Foldable, ADDIX Soft compound, SnakeSkin, Tubeless Easy |
Electric Components
Motor |
Bosch G4 Performance Line CX, The smart system, Continuous rated power: 250 W, Max. torque: 85 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 4 drive modes with support levels 60-340 % plus walk assistance, Mileage: See BOSCH Range Assistant |
---|---|
Battery |
Bosch PowerTube 625, The smart system, Capacity: 625 Wh/16.7 Ah, Voltage: 36 V, Technology: Li-Ion |
Display |
Bosch Kiox 300, The smart system |
Charger |
Bosch 4A charger |
