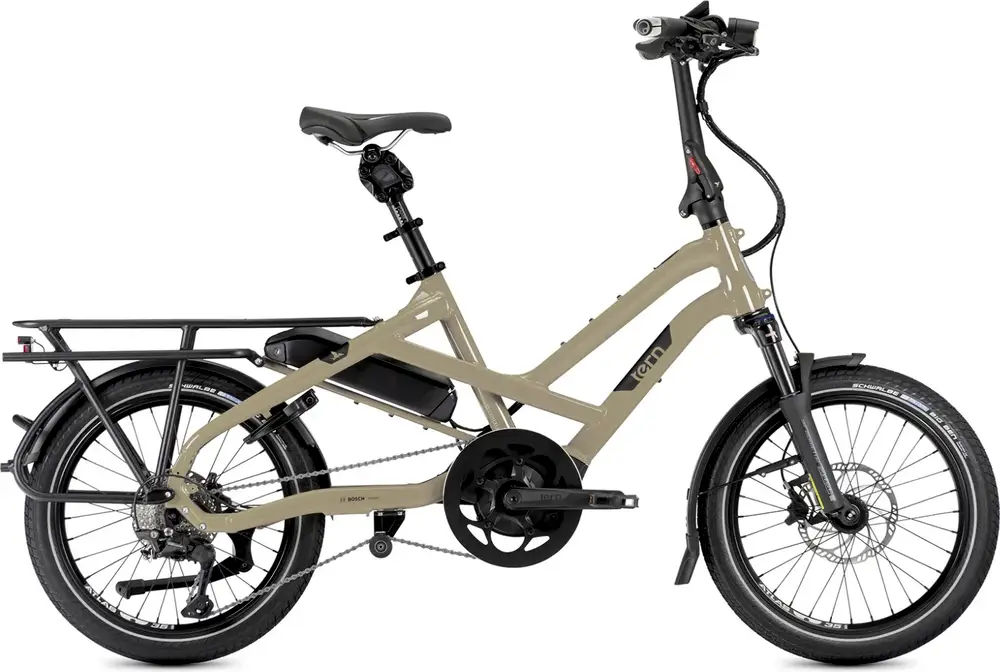

Tern HSD S11 2024

Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg

Suntour custom for Tern, 1.5in tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg

Motor integrated

Tern Flux Pro Taper by FSA, 1.5in, angular contact bearings, Physis integrated

Tern Andros, adjustable, forged construction, patented technology

Tern Sweep, 6061-AL, Tern Andros adapted

Tern Upright by Velo

Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm

Urban with non-slip surface, sealed bearings

Shimano Deore Shadow+

Tern HSD custom

Shimano Deore, 1 x 11 spd

11-36T, 11 spd

KMC 11 spd, for eBike, EPT corrosion resistant coating

Custom Bash Guard

Magura MT4, hydraulic disc, 180 mm rotor

Magura MT4 e-stop, hydraulic, with brake light sensor

Tern Atlas H, wide 35 mm

Novatec, Thru-axle, sealed bearings

Novatec, sealed cartridge bearing, disc

Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification

Bosch Performance Sport, 340% Assist, 75 Nm Torque, Class 3 max speed 28 mph

Bosch PowerPack 545

Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock

100-240V, 4A (US)

Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam

SKS, stainless hardware

Combo Mount

Bosch Connect Module, GPS/GSM connectivity; 1 year free cell connectivity, Anti-theft alarm
