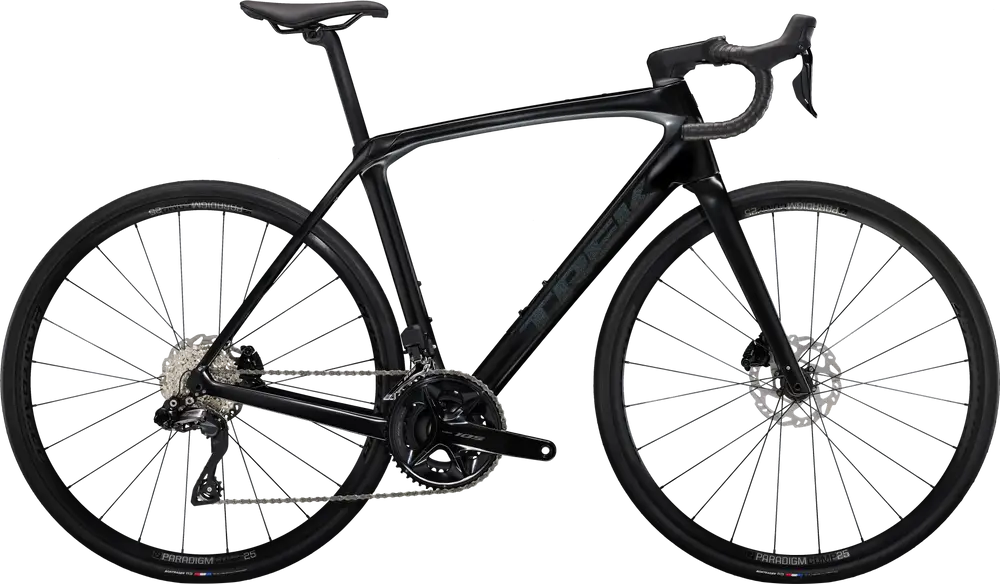

A carbon frame endurance bike with upper mid-range components and shimano 105 hydraulic disc brakes.
Build
| Frame | 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle BB Standard: T47, Threaded Tire Clearance: 38c Color: Hex Blue |
|---|---|
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Stem | Size: 47, Trek RCS Pro, -7 degree, 70mm length; Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length |
| Handlebar | Size: 47, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width; Size: 50, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width |
| Saddle | Size: 47, 50, 52, Bontrager Verse Short Comp, steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Verse Short Comp, steel rails, 145mm width |
| Seatpost | Size: 47, 50, 52, 54, 56, KVF aero carbon seatpost, 20mm offset, 280mm length; Size: 58, 60, 62, KVF aero carbon seatpost, 20mm offset, 320mm length Type: Rigid |
Groupset
| Rear Derailleur | Shimano R7150 Di2, 36T max cog |
|---|---|
| Front Derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
| Crank | Size: 47, Shimano 105 R7100, 50/34, 165mm length; Size: 50, 52, Shimano 105 R7100, 50/34, 170mm length; Size: 54, 56, Shimano 105 R7100, 50/34, 172.5mm length; Size: 58, 60, 62, Shimano 105 R7100, 50/34, 175mm length |
| Shifters | Shimano 105 R7170 Di2, 12 speed |
| Cassette | Shimano 105 7101, 11-34, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |
| Brakes | Shimano 105 hydraulic disc, flat mount Type: Shimano 105 Hydraulic Disc |
Wheels
| Rims | Front: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle, Rear: Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano 11/12-speed freehub, 142×12 thru axle |
|---|---|
| Front Hub | Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle |
| Rear Hub | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, Shimano 11/12-speed freehub, 142×12 thru axle |
| Tires | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm |
| Disc Rotors | Shimano RT70, centerlock, 160mm |
