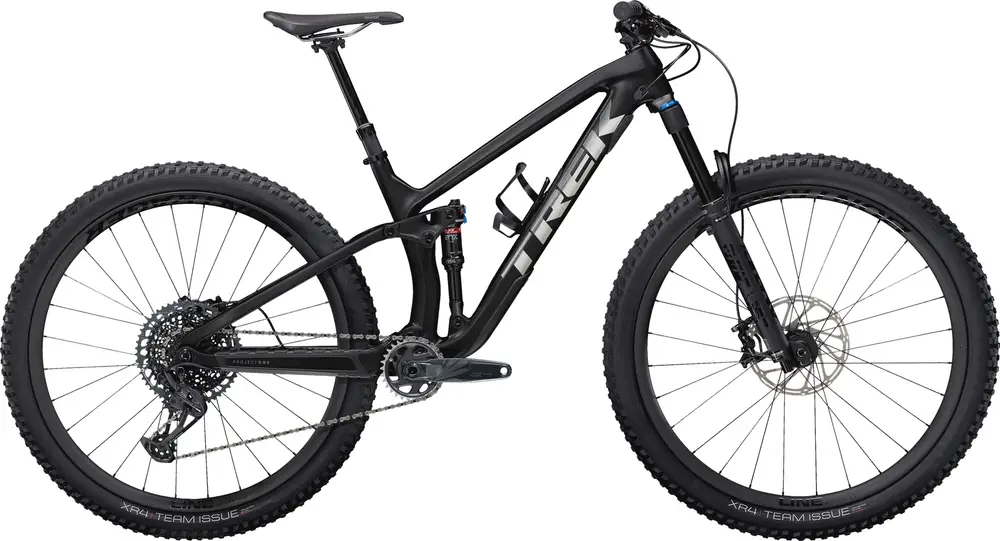

2023 Trek Fuel EX 9.8 GX Gen 5 A 27.5″ / 29″ carbon frame full suspension trail bike with high-end components.
Build
| Frame | carbon frame BB Standard: BB86/BB92, Press Fit Tire Clearance: 2.6″ Colors: Matte Carbon Smoke; Raw Carbon / Rage Red; Lithium Grey / Factory Orange; Satin Black Olive |
|---|---|
| Fork | Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel |
| Rear Shock | Size: XS, S, Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 52.5mm; Size: S, M, ML, L, XL, Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab, 210mm x 55mm |
| Bottom Bracket | SRAM DUB, 92mm, PressFit |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom |
| Stem | Size: XS, S, Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 35mm length; Size: M, ML, L, XL, Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length |
| Handlebar | Size: XS, S, M, ML, L, XL, Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width; Size: XS, S, Bontrager Line Pro, OCLV Carbon, 35mm, 15mm rise, 750mm width |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Seatpost | Size: XS, S, Bontrager Line Elite, 100mm travel, MaxFlow, internal routing, 31.6mm, 340mm length; Size: XS, S, Bontrager Line Elite Dropper, 100mm travel, internal routing, 31.6mm, 340mm length; Size: M, ML, Bontrager Line Elite, 150mm travel, MaxFlow, internal routing, 31.6mm, 440mm length; Size: M, ML, Bontrager Line Elite Dropper, 150mm travel, internal routing, 31.6mm, 440mm length; Size: L, XL, Bontrager Line Elite, 170mm travel, MaxFlow, internal routing, 31.6mm, 480mm length; Size: L, XL, Bontrager Line Elite Dropper, 170mm travel, internal routing, 31.6mm, 480mm length |
| Grips | Size: XS, S, M, ML, L, XL, Bontrager XR Trail Elite, nylon lock-on; Size: XS, S, M, ML, L, XL, Bontrager XR Trail Elite, alloy lock-on |
Groupset
| Rear Derailleur | SRAM GX Eagle |
|---|---|
| Crank | Size: XS, S, M, ML, L, SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 170mm length; Size: S, M, ML, L, XL, SRAM GX Eagle, DUB, 30T alloy ring, Boost (52mm chainline), 175mm length |
| Shifters | SRAM GX Eagle, 12 speed |
| Cassette | SRAM Eagle XG-1275, 10-52, 12 speed |
| Chain | SRAM GX Eagle, 12 speed |
| Brakes | SRAM G2 RS 4-piston hydraulic disc |
Wheels
| Rims | Bontrager Line Elite 30, Tubeless Ready |
|---|---|
| Front Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12mm thru axle |
| Tires | Size: XS, S, M, ML, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.×2.40”; Size: XS, S, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5×2.60”; Size: XS, S, Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5×2.50”; Size: S, M, ML, L, XL, Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29×2.60”; Size: S, M, ML, L, XL, Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29×2.50” |
| Disk Rotors | Size: XS, S, M, ML, L, XL, SRAM CenterLine, 6-bolt, round edge, 180mm; Size: M, ML, L, XL, SRAM CenterLine, 6-bolt, round edge, 200mm |
