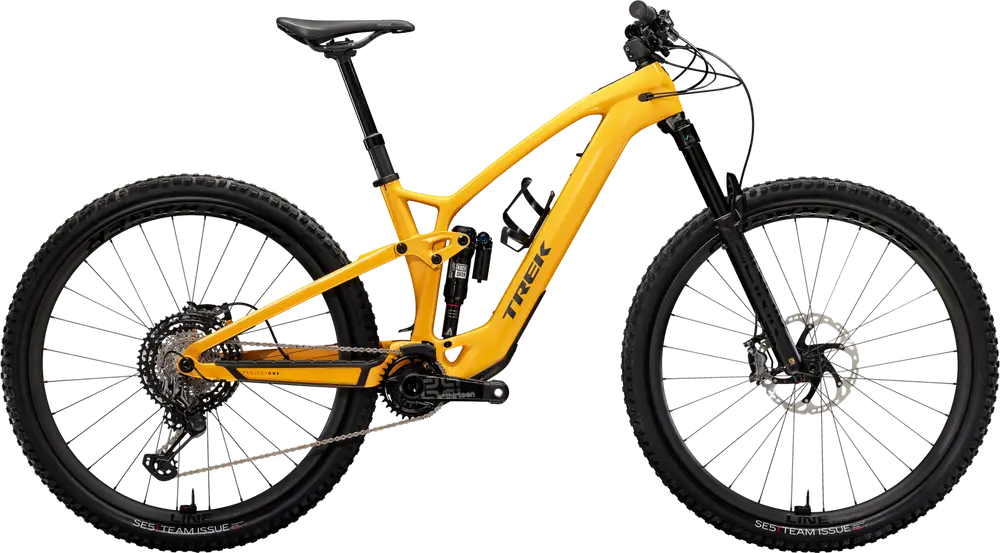

Trek Fuel EXe 9.9 XTR 2024 Overview
Build
| Frame |
OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel Hanger Standard:Â UDH Tire Clearance:Â 2.5″ Color:Â Baja Yellow |
|---|---|
| Fork |
RockShox Lyrik Ultimate, AirWiz, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 150mm travel Travel:Â 150mm Spring Type:Â Air |
| Shock |
RockShox Super Deluxe Ultimate AirWiz, RCT2 damper, 205mm x 60mm Travel:Â 140mm |
| Saddle |
Bontrager Arvada Pro, carbon rails, 138mm width |
| Seatpost |
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length Type:Â Dropper |
| Grips |
Bontrager XR Trail Elite, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano XTR M9100, Shadow Plus, long cage, 51T max cog |
|---|---|
| Crank |
E*thirteen E*spec Race carbon, 34T, 165mm length |
| Shifters |
Shimano XTR M9100, 12 speed |
| Cassette |
Shimano XTR M9101, 10-51, 12 speed |
| Chain |
Shimano Dura-Ace/XTR M9100, 12 speed |
| Brakes |
Shimano XTR M9120 4-piston hydraulic disc Type:Â Hydraulic Disc |
Wheels
| Rims |
Front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29”, Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29” |
|---|---|
| Tires |
Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29×2.50”; Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50” |
| Disc Rotors |
Size: S, M, L, XL, Shimano RT86, 6-bolt, 203mm; Size: S, M, L, XL, Shimano RT86, 6-bolt, 180mm |
Electric Components
| Motor |
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
|---|---|
| Battery |
TQ 360Wh Recycling Program:Â Â Call2Recycle |
| Display |
TQ LED display with Bluetooth & ANT+ connectivity |
