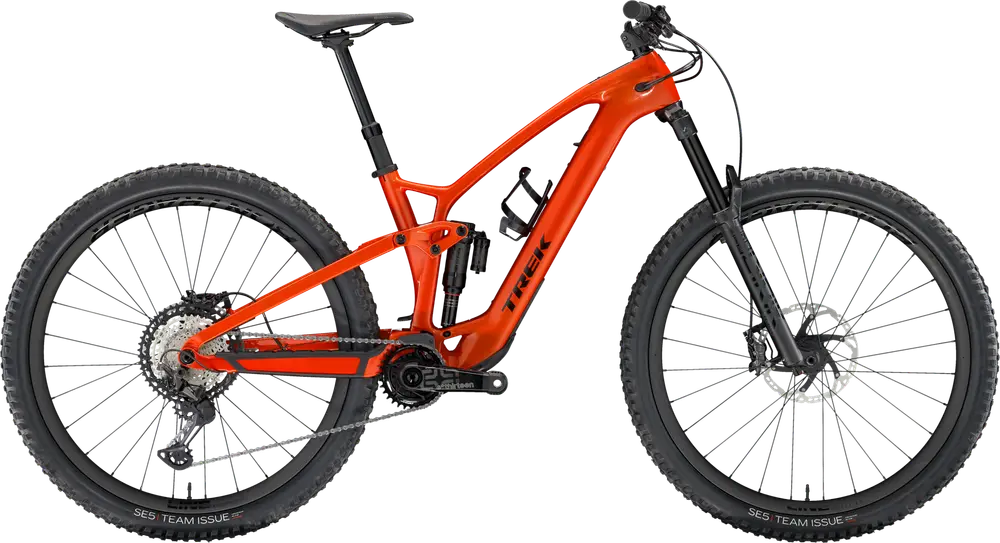

Trek Fuel EXe 9.8 Bike 2025 Overview
 Build
| Frame |
OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel Hanger Standard:Â UDH Tire Clearance:Â 2.6″ Colors:Â Deep Smoke; Dark Star; Marianas Blue; Red Smoke |
|---|---|
| Fork |
RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel Travel:Â 150mm Spring Type:Â Air |
| Shock |
RockShox Super Deluxe Select+ RT, 205mm x 60mm Travel:Â 140mm |
| Headset |
Integrated cartridge bearing, 1-1/8” top, 1.5” bottom |
| Stem |
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length |
| Handlebar |
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Saddle |
Size: S, M, L, XL, Verse Short Comp, steel rails, 145mm width; Size: S, M, L, XL, Bontrager Arvada, austenite rails, 138mm width |
| Seatpost |
Size: S, Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length; Size: M, Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length; Size: L, Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length; Size: XL, Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length Type:Â Dropper |
| Grips |
Bontrager XR Trail Elite, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano XT M8100, long cage |
|---|---|
| Crank |
E*thirteen E*spec, 32T alloy ring, 55mm chainline |
| Shifters |
Shimano XT M8100, 12 speed |
| Cassette |
Shimano XT M8100, 10-51, 12 speed |
| Chain |
Shimano Ultegra/XT M8100, 12 speed |
| Brakes |
Shimano XT M8120 4-piston hydraulic disc Type:Â Hydraulic Disc |
Wheels
| Rims |
Bontrager Line Elite 30, Tubeless Ready |
|---|---|
| Front Hub |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Tires |
Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 60 tpi, 29×2.50”; Size: S, M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50” |
| Disc Rotors |
Size: S, M, L, XL, Shimano RT86, 6-bolt, 203mm; Size: S, M, L, XL, Shimano RT86, 6-bolt, 180mm |
Electric Components
| Motor |
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
|---|---|
| Battery |
TQ 360Wh Recycling Program:Â Â Call2Recycle |
| Display |
TQ LED display with Bluetooth & ANT+ connectivity |
| Charger |
TQ 4A charger |
