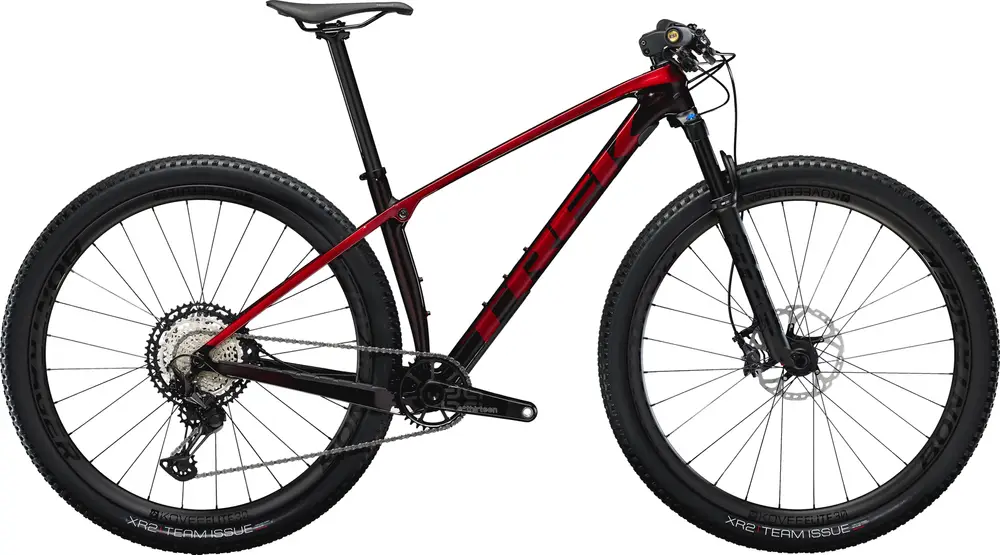

2023 Trek Procaliber 9.8 A 29″ carbon frame hardtail crosscountry bike with high-end components.
Build
Frame |
carbon frame Tire Clearance:Â 2.4″ Colors:Â Dark Prismatic / Trek Black; Radioactive Red to Cobra Blood Fade; Carbon Red Smoke / Crimson |
---|---|
Fork |
Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 100 mm travel |
Bottom Bracket |
e*thirteen BB20-92 |
Handlebar |
Size: S, M, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70mm length; Size: ML, L, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80mm length; Size: XL, XXL, Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length |
Saddle |
Bontrager Verse Elite, austenite rails, 145 mm width |
Seatpost |
Size: S, Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length; Size: M, ML, L, XL, XXL, Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length |
Grips |
ESI Chunky |
Groupset
Rear Derailleur |
Shimano XT M8100, long cage |
---|---|
Crank |
Size: S, e*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 52 mm chainline, 170 mm length; Size: M, ML, L, XL, XXL, e*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 52 mm chainline, 175 mm length |
Shifters |
Shimano XT M8100, 12-speed |
Cassette |
Shimano XT M8100, 10-51, 12 speed |
Chain |
Shimano XT M8100, 12-speed |
Brakes |
Shimano Deore XT M8100 hydraulic disc |
Wheels
Rims |
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless-Ready |
---|---|
Front Hub |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
Rear Hub |
Size: S, M, ML, L, XL, XXL, Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle; Size: S, M, ML, L, XL, XXL, Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
Tires |
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29×2.20″ |
Disk Rotors |
Size: S, M, ML, L, XL, XXL, Shimano RT76, 6-bolt, 160 mm; Size: S, M, ML, L, XL, XXL, Shimano RT76, 6-bolt, 180 mm |
