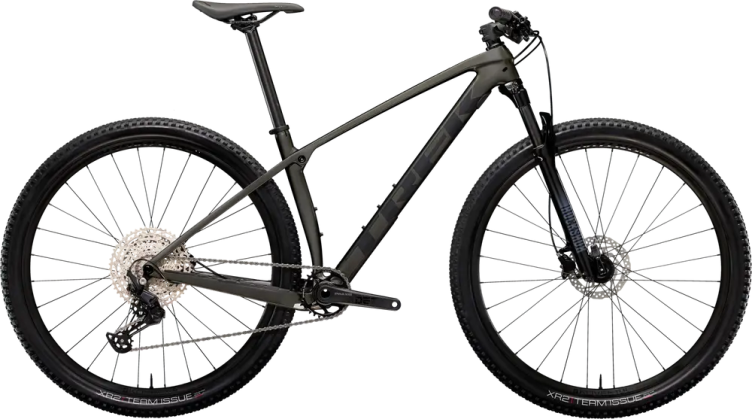

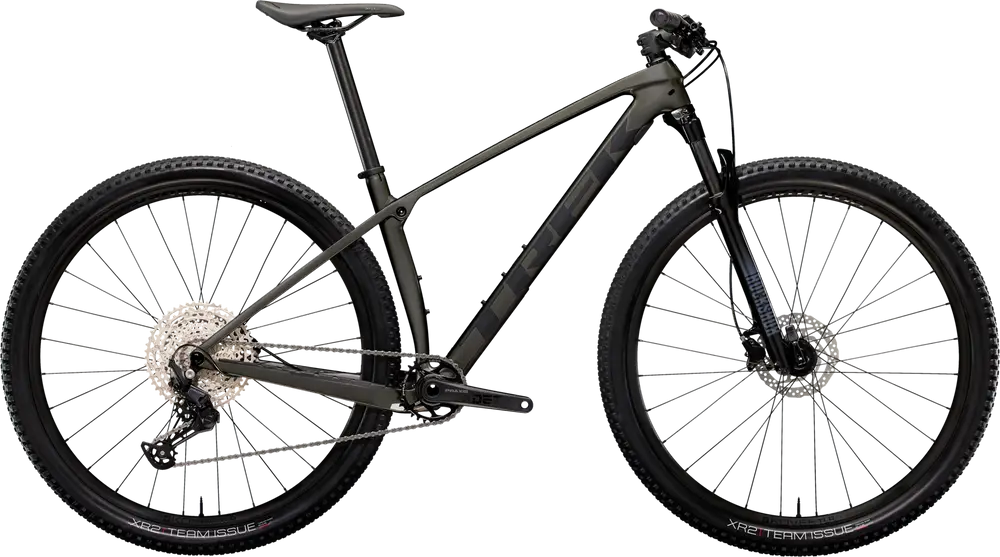

Trek Procaliber 9.5 2024 Overview
Build
Frame |
OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148 BB Standard:Â BB86/BB92, Press Fit Tire Clearance:Â 2.4″ Color:Â Radioactive Red / Trek Black |
---|---|
Fork |
RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel Travel:Â 100mm Spring Type:Â Air |
Bottom Bracket |
Shimano MT500, 92mm, PressFit |
Headset |
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom |
Stem |
Size: S, M, Bontrager Rhythm Comp, 31.8mm, 0 degree, 60mm length; Size: M, ML, Bontrager Rhythm Comp, 31.8mm, 0 degree, 70mm length; Size: L, XL, Bontrager Rhythm Comp, 31.8mm, 0 degree, 80mm length |
Handlebar |
Size: S, M, ML, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
Saddle |
Size: S, M, ML, L, XL, Bontrager Arvada, steel rails, 138mm width; Size: S, M, ML, L, XL, Bontrager Verse Comp, steel rails, 145mm width |
Seatpost |
Size: S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: ML, L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length Type:Â Rigid |
Grips |
Bontrager XR Trail Comp, nylon lock-on |
Groupset
Rear Derailleur |
Shimano Deore M6100, long cage |
---|---|
Crank |
Size: S, M, Shimano MT511, 30T steel ring, 52mm chainline, 170mm length; Size: ML, L, XL, Shimano MT511, 30T steel ring, 52mm chainline, 175mm length |
Shifters |
Shimano Deore M6100, 12 speed |
Cassette |
Shimano Deore M6100, 10-51, 12 speed |
Chain |
Shimano Deore M6100, 12 speed |
Brakes |
Shimano MT200 hydraulic disc Type:Â Hydraulic Disc |
Wheels
Rims |
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
---|---|
Spokes |
14 g stainless steel, black |
Front Hub |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
Rear Hub |
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
Tires |
Size: S, M, ML, L, XL, Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29×2.20”; Size: S, M, ML, L, XL, Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.20” |
Disc Rotors |
Size: S, M, ML, L, XL, Shimano RT26, 6-bolt, 160mm; Size: L, XL, Shimano RT26, 6-bolt, 180mm |
