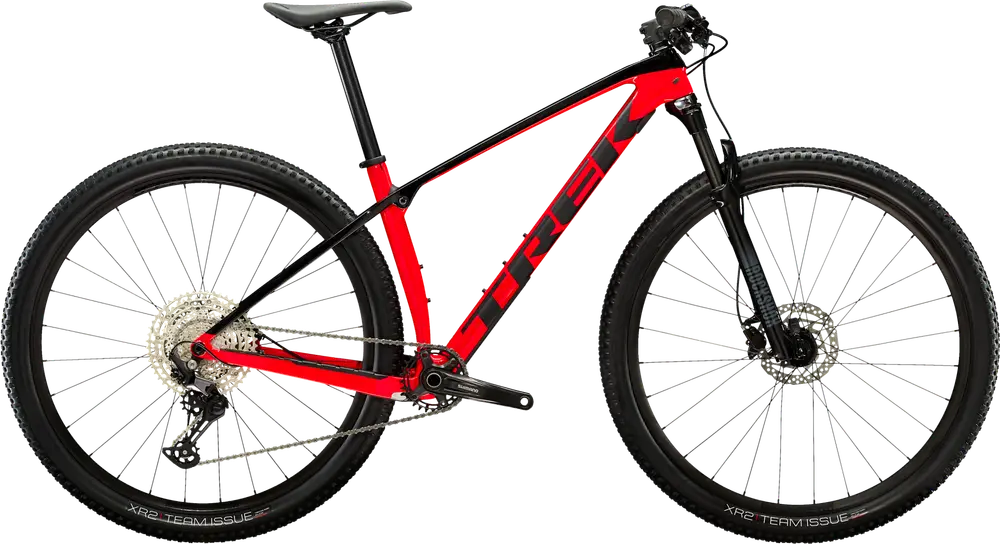

Trek Procaliber 9.5 Gen 2 2024 Overview
Build
| Frame | OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148 BB Standard: BB86/BB92, Press Fit Tire Clearance: 2.4″ Color: Radioactive Red / Trek Black |
|---|---|
| Fork | RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 100mm travel Travel: 100mm Spring Type: Air |
| Bottom Bracket | Shimano MT500, 92mm, PressFit |
| Headset | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom |
| Stem | Size: S, M, Bontrager Rhythm Comp, 31.8mm, 0 degree, 60mm length; Size: M, ML, Bontrager Rhythm Comp, 31.8mm, 0 degree, 70mm length; Size: L, XL, Bontrager Rhythm Comp, 31.8mm, 0 degree, 80mm length |
| Handlebar | Size: S, M, ML, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle | Size: S, M, ML, L, XL, Bontrager Arvada, steel rails, 138mm width; Size: S, M, ML, L, XL, Bontrager Verse Comp, steel rails, 145mm width |
| Seatpost | Size: S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: ML, L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length Type: Rigid |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur | Shimano Deore M6100, long cage |
|---|---|
| Crank | Size: S, M, Shimano MT511, 30T steel ring, 52mm chainline, 170mm length; Size: ML, L, XL, Shimano MT511, 30T steel ring, 52mm chainline, 175mm length |
| Shifters | Shimano Deore M6100, 12 speed |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Brakes | Shimano MT200 hydraulic disc Type: Hydraulic Disc |
Wheels
| Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
|---|---|
| Spokes | 14 g stainless steel, black |
| Front Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Tires | Size: S, M, ML, L, XL, Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29×2.20”; Size: S, M, ML, L, XL, Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.20” |
| Disc Rotors | Size: S, M, ML, L, XL, Shimano RT26, 6-bolt, 160mm; Size: L, XL, Shimano RT26, 6-bolt, 180mm |
