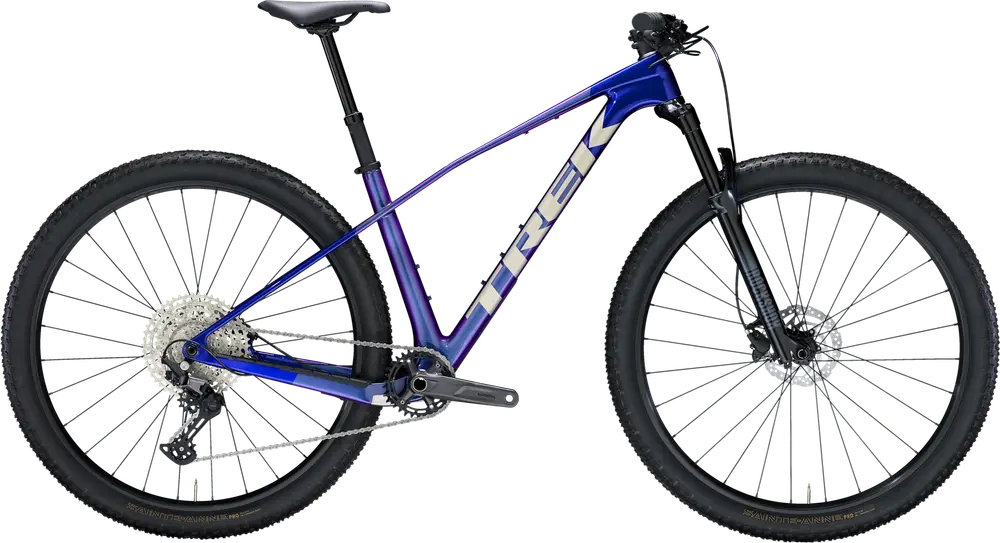

Trek Procaliber 9.5 Gen 3 Bike 2025 Overview
Build
| Frame | OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post mount brake, Boost148 BB Standard: BB86/BB92, Press Fit Tire Clearance: 2.4″ Colors: Purple Flip / Hex Blue; Lava |
|---|---|
| Fork | RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel Travel: 120mm Spring Type: Air |
| Bottom Bracket | Shimano MT500, 92mm, PressFit |
| Headset | FSA IS-2, 1-1/8” top, 1.5” bottom |
| Stem | Size: S, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, ML, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
| Handlebar | Size: S, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: M, ML, L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle | Verse Short, chromoly rails, 145mm width |
| Seatpost | Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length; Size: M, ML, L, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length; Size: XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length Type: Dropper |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur | Shimano Deore M6100, long cage |
|---|---|
| Crank | Size: S, M, ML, Shimano MT512, 32T, 55mm chainline, 170mm; Size: L, XL, Shimano MT512, 32T, 55mm chainline, 175mm |
| Shifters | Shimano Deore M6100, 12 speed |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Brakes | Shimano MT200 hydraulic disc Type: Hydraulic Disc |
Wheels
| Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
|---|---|
| Front Hub | Shimano TC500 alloy, centerlock, 110x15mm thru axle |
| Rear Hub | Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| Tires | Size: S, M, ML, L, XL, Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.40”; Size: S, M, ML, L, XL, Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.20” |
| Disc Rotors | Size: S, M, ML, L, XL, Shimano RT10, centerlock, 160mm; Size: L, XL, Shimano RT10, centerlock, 180mm |
