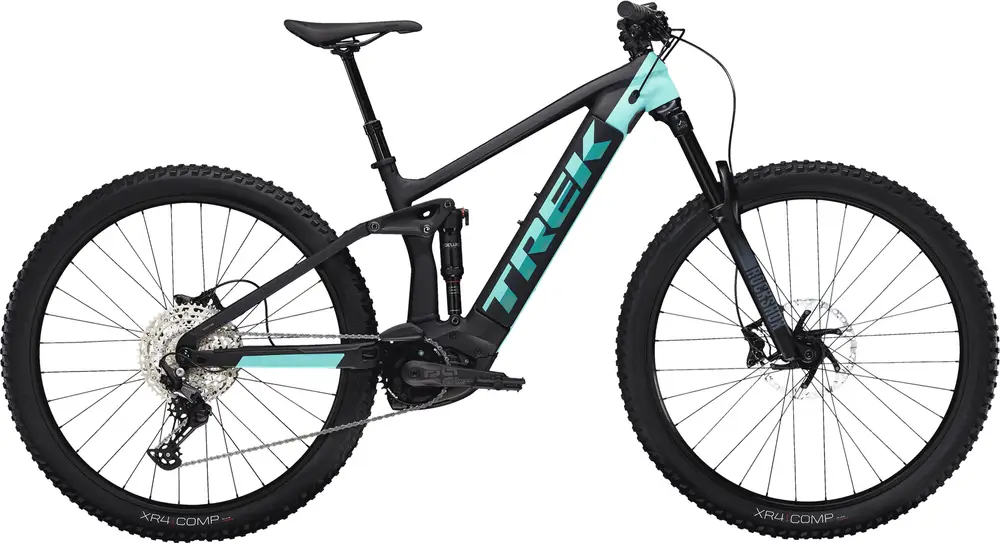

2023 Trek Rail 5 625 W Gen 2 A 29″ aluminum frame full suspension enduro e-bike with upper mid-range components.
Build
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel Tire Clearance: 2.6″ Colors: Crimson / Lithium Grey; Matte Trek Black / Miami Green |
|---|---|
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel |
| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Seatpost | Size: S, TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length; Size: S, Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length; Size: M, L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length; Size: M, L, XL, Bontrager Line Dropper, 125mm travel, internal routing, 31.6 mm, 395mm length |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur | Shimano Deore M6100, long cage |
|---|---|
| Crank | E*thirteen, 34T, steel |
| Shifters | Shimano Deore M6100, 12 speed |
| Cassette | SunRace CSMZ800 11-51, 12 speed |
| Chain | Shimano Deore M6100 |
| Brakes | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
Wheels
| Rims | Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve |
|---|---|
| Front Hub | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Rear Hub | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle |
| Tires | Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60″ |
| Disk Rotors | Shimano RT76, 6-bolt, 203 mm |
Electric Components
| Motor | The all-new Bosch Performance Line CX motor is lighter, smaller and quieter than previous versions, for cleaner integration and more nimble handling. It’s also more efficient so you can go further on a single battery charge. Use the intelligent eMTB mode to automatically adjust the amount of assist to match the terrain. It’s a set-and-forget mode that delivers just the right amount of power so you can focus on enjoying the ride. |
|---|---|
| Battery | Bosch PowerTube 625 |
| Charger | Bosch compact 2A, 100–240V, smart system |
