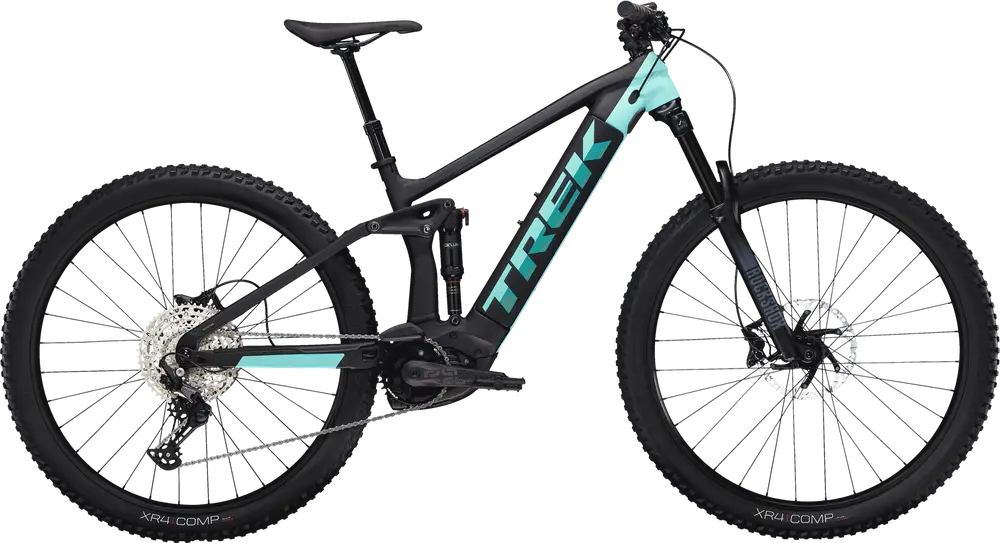

2023 Trek Rail 5 Gen 2 A 29″ aluminum frame full suspension enduro e-bike with upper mid-range components.
Build
| Frame |
Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel Tire Clearance:Â 2.6″ Colors:Â Crimson / Lithium Grey; Matte Trek Black / Miami Green |
|---|---|
| Fork |
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel |
| Rear Shock |
RockShox Deluxe Select+, 230mm x 57.5mm |
| Headset |
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom |
| Stem |
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length |
| Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Saddle |
Bontrager Arvada, steel rails, 138mm width |
| Seatpost |
Size: S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano Deore M6100, long cage |
|---|---|
| Crank |
E*thirteen, 34T, steel |
| Shifters |
Shimano Deore M6100, 12 speed |
| Cassette |
Shimano Deore M6100, 10-51, 12 speed |
| Chain |
Shimano Deore M6100, 12 speed |
| Brakes |
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper |
Wheels
| Rims |
Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve |
|---|---|
| Spokes |
14 g stainless steel |
| Front Hub |
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Rear Hub |
Bontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle |
| Tires |
Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60” |
| Disk Rotors |
Shimano RT76, 6-bolt, 203mm |
Electric Components
| Motor |
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist |
|---|---|
| Battery |
Bosch PowerTube 500Wh |
| Charger |
Bosch compact 2A, 100-240V, smart system |
