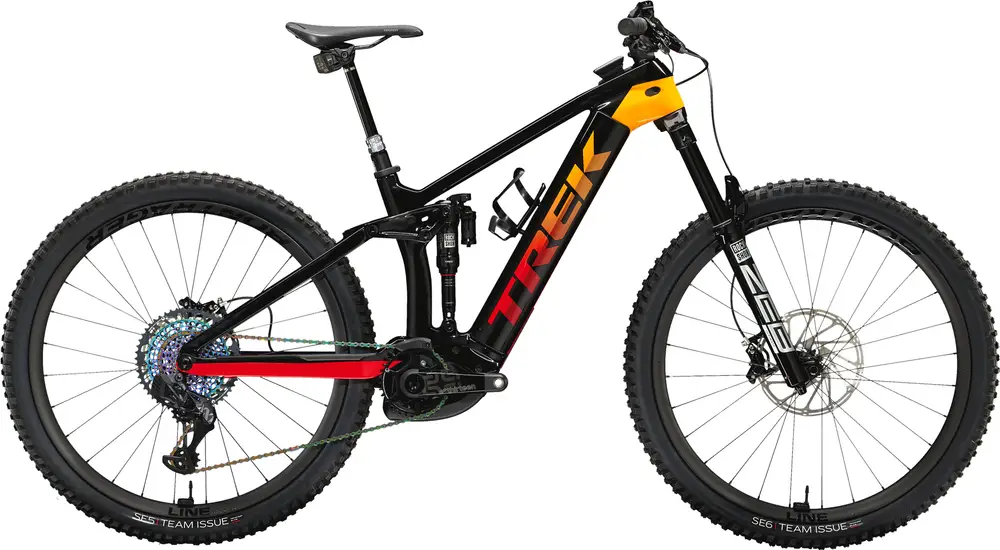

2023 Trek Rail 9.9 XX1 AXS Gen 3 A 29″ carbon frame full suspension enduro e-bike with ultra high-end components.
Build
| Frame | NEW OCLV Mountain Carbon main frame, 1.8” lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel Tire Clearance: 2.6″ Colors: Trek Black / Marigold to Red Fade; Dark Prismatic / Trek Black; Carbon Red Smoke / Viper Red |
|---|---|
| Fork | RockShox ZEB Ultimate, AirWiz, DebonAir spring, Charger 2.1 RC2 damper, e-MTB optimzed crown, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel |
| Rear Shock | RockShox Super Deluxe Thru Shaft, AirWiz, 230mm x 57.5mm |
| Headset | Knock Block Integrated, cartridge bearing, 1-1/8” top, 1.8” bottom |
| Stem | Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree, 45mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Seatpost | Size: M, RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length; Size: L, XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
Groupset
| Rear Derailleur | SRAM XX1 Eagle AXS |
|---|---|
| Crank | SRAM X-SYNC 2, 34T, alloy |
| Shifters | SRAM Eagle AXS, wireless, 12 speed |
| Cassette | SRAM Eagle XG-1299, 10-52, 12 speed |
| Chain | SRAM XX1 Eagle, 12 speed |
| Brakes | SRAM Code RSC 4-piston hydraulic disc |
Wheels
| Rims | Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready |
|---|---|
| Tires | Size: M, L, XL, Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50”; Size: M, L, XL, Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50” |
| Disk Rotors | Size: M, L, XL, SRAM CenterLine, 6-bolt, round-edge, 180mm; Size: M, L, XL, SRAM CenterLine, 6-bolt, round edge, 200mm |
Electric Components
| Motor | Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC) |
|---|---|
| Battery | Bosch PowerTube 750Wh, smart system |
| Charger | Bosch standard 4A, 230V, smart system |
