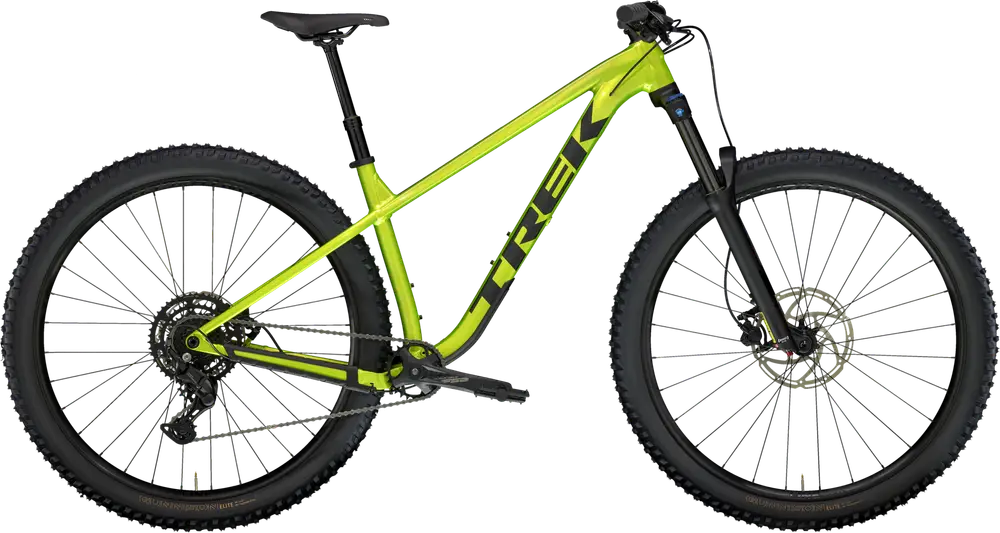

Trek Roscoe 6 2024 Overview
Build
| Frame |
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, ISCG 05, threaded BB, Boost148, 12mm thru axle BB Standard:Â BSA, 73mm, Threaded Tire Clearance:Â 2.6″ Colors:Â Power Surge; Crimson; Matte Keswick |
|---|---|
| Fork |
SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 44mm offset, Boost110, 15mm bolt-on thru axle, 140mm travel Travel:Â 140mm Spring Type:Â Air |
| Bottom Bracket |
Shimano 7420ST, 73mm, threaded cartridge |
| Headset |
FSA IS-2, 1-1/8” top, 1.5” bottom |
| Stem |
Size: XS, S, Bontrager Comp, 31.8mm, 7 degree, 35mm length; Size: M, ML, L, XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Handlebar |
Size: XS, S, Bontrager alloy, 31.8mm, 15mm rise, 750mm width; Size: M, ML, L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 780mm width |
| Saddle |
Bontrager Verse Short, stainless steel rails |
| Seatpost |
Size: XS, S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, TranzX JD-YSP18, 130mm travel, internal routing, 31.6mm, 425mm length; Size: ML, L, XL, TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length Type:Â Dropper |
| Pedals |
VP-536 nylon platform |
| Grips |
Bontrager XR Trail Comp, nylon lock-on |
Groupset
| Rear Derailleur |
Shimano CUES U4000 |
|---|---|
| Crank |
Size: XS, S, M, ML, L, FSA Alpha Drive, 28T steel ring, 55mm chainline, 170mm length; Size: XL, FSA Alpha Drive, 28T steel ring, 55mm chainline, 175mm length |
| Cassette |
Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain |
Shimano LG500, 9/10/11 speed |
| Brakes |
Tektro HD-M275 hydraulic disc Type:Â Hydraulic Disc |
Wheels
| Rims |
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve |
|---|---|
| Front Hub |
Shimano TC500 alloy, centerlock, 110x15mm thru axle |
| Rear Hub |
Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| Tires |
Size: XS, Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5×2.60”; Size: S, M, ML, L, XL, Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29×2.60” |
| Disc Rotors |
Size: XS, S, M, ML, L, XL, Tektro, centerlock, 180mm; Size: XS, S, M, ML, L, XL, Tektro, centerlock, 203mm |
