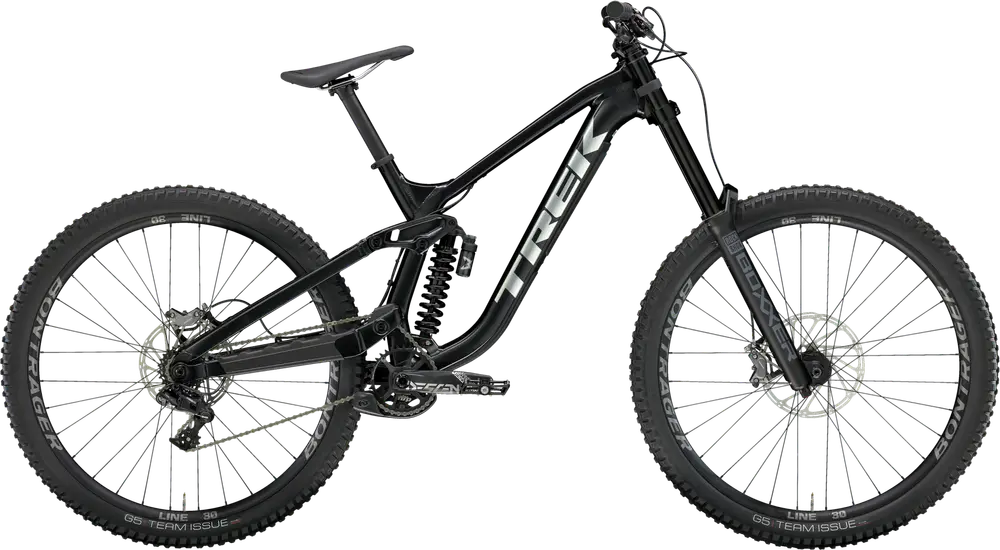

Trek Session 8 29 GX 2024 Overview
Build
| Frame |
Alpha Platinum Aluminum, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12mm thru axle, 200mm travel BB Standard:Â BSA, 83mm, Threaded Tire Clearance:Â 2.5″ Color:Â Satin Trek Black |
|---|---|
| Fork |
RockShox Boxxer, DebonAir+ spring, Rush RC damper, 52mm offset, BoostDH 110×20 Maxle Stealth, 200mm travel Travel:Â 200mm Spring Type:Â Air |
| Shock |
Size: R1, Marzocchi Bomber, 400lb spring, 250mm x 72.5mm; Size: R2, Marzocchi Bomber, 450lb spring, 250mm x 72.5mm; Size: R3, Marzocchi Bomber, 500lb spring, 250mm x 72.5mm Travel:Â 200mm |
| Bottom Bracket |
SRAM DUB, 83mm, BSA threaded |
| Headset |
FSA Orbit, sealed cartridge bearing, 1-1/8” top, 1.5” bottom (includes geometry adjust angled cups) |
| Stem |
Bontrager Line Pro, 35mm, Direct Mount, 50mm length |
| Handlebar |
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
| Saddle |
Bontrager Arvada, hollow chromoly rails, 138mm width |
| Seatpost |
Bontrager Rhythm Elite, 31.6mm, 0mm offset, 330mm length Type:Â Rigid |
| Pedals |
Wellgo BO-87B, alloy body, Cro-Mo axle, replaceable pins |
| Grips |
Bontrager XR Trail Elite, nylon lock-on |
Groupset
| Rear Derailleur |
SRAM GX DH, medium cage |
|---|---|
| Crank |
Truvativ Descendant DH, DUB 83, 34T steel ring, 165mm length |
| Shifters |
SRAM GX DH, 7 speed |
| Cassette |
SRAM PG-720, 11-25, 7 speed |
| Chain |
SRAM PC-1110, 11 speed |
| Brakes |
SRAM CODE Bronze 4-piston hydraulic disc Type:Â Hydraulic Disc |
Wheels
| Rims |
Front: Bontrager Line DH 30, Tubeless Ready, 6-bolt, 110x20mm Boost thru axle, 29”, Rear: Bontrager Line DH 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano 7 speed freehub, 157x12mm thru axle, 29” |
|---|---|
| Tires |
Bontrager G5 Team Issue, wire bead, 2-ply 60 tpi, 29×2.50” |
| Disc Rotors |
Size: R1, R2, R3, SRAM CenterLine, 6-bolt, round edge, 220mm; Size: R1, R2, R3, SRAM CenterLine, 6-bolt, round edge, 200mm |
