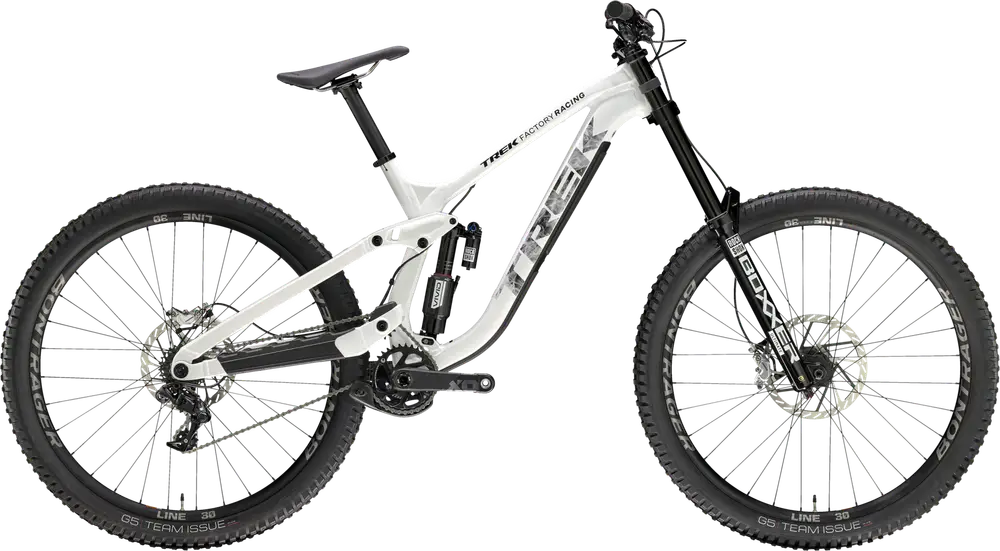

Trek Session 9 X01 2024 Overview
Build
| Frame | Alpha Platinum Aluminum, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12mm thru axle, 200mm travel BB Standard: BSA, 83mm, Threaded Tire Clearance: 2.5″ Color: Team |
|---|---|
| Fork | RockShox Boxxer Ultimate, DebonAir+ spring, Charger 3 damper, 52mm offset, BoostDH 110×20 Maxle Stealth, 200mm travel Travel: 200mm Spring Type: Air |
| Shock | RockShox Vivid Ultimate, 250mm x 72.5mm Travel: 200mm |
| Bottom Bracket | SRAM DUB, 83mm, BSA threaded |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8” top, 1.5” bottom (includes geometry adjust angled cups) |
| Stem | Bontrager Line Pro, 35mm, Direct Mount, 50mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width |
| Saddle | Bontrager Arvada, austenite rails, 138mm width |
| Seatpost | Bontrager Rhythm Elite, 31.6mm, 0mm offset, 330mm length Type: Rigid |
| Pedals | Wellgo MG-1, magnesium body, Cro-Mo axle, replaceable pins |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
Groupset
| Rear Derailleur | SRAM X01 DH, medium cage |
|---|---|
| Crank | SRAM X01 DH, DUB 83, 34T alloy ring, 165mm length |
| Shifters | SRAM X01 DH, 7 speed |
| Cassette | SRAM PG-720, 11-25, 7 speed |
| Chain | SRAM PC-1110, 11 speed |
| Brakes | Size: R1, R2, R3, SRAM 6-bolt, 200mm; Size: R1, R2, R3, SRAM HS2, 6-bolt, 220mm Type: Hydraulic Disc |
Wheels
| Rims | Front: Bontrager Line DH 30, Tubeless Ready, 6-bolt, 110x20mm Boost thru axle, 29”, Rear: Bontrager Line DH 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano 7 speed freehub, 157x12mm thru axle, 29” |
|---|---|
| Tires | Bontrager G5 Team Issue, wire bead, 2-ply 60 tpi, 29×2.50” |
| Disc Rotors | Size: R1, R2, R3, SRAM 6-bolt, 200mm; Size: R1, R2, R3, SRAM HS2, 6-bolt, 220mm |
