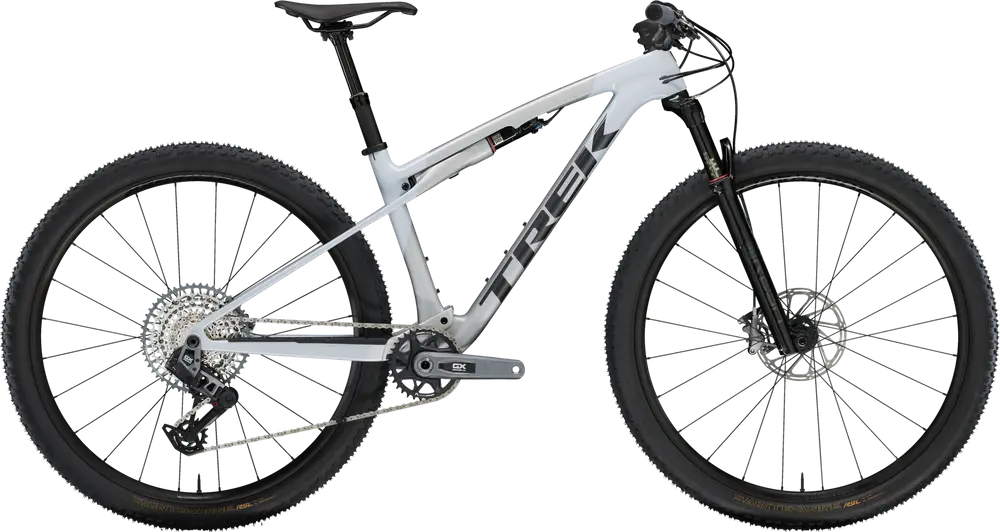

Trek Supercaliber SL 9.7 AXS Gen 2 2024 Overview
Build
| Frame |
SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel BB Standard:Â BB86/BB92, Press Fit Hanger Standard:Â UDH Tire Clearance:Â 2.4″ Colors:Â Power Surge; Plasma Grey Pearl |
|---|---|
| Fork |
RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel Travel:Â 110mm Spring Type:Â Air |
| Shock |
Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper Travel:Â 80mm |
| Bottom Bracket |
SRAM DUB, 92 mm, PressFit |
| Stem |
Size: S, M, Bontrager Elite, 35 mm, 13-degree, 60 mm length; Size: ML, Bontrager Elite, 35 mm, 13-degree, 70 mm length; Size: L, Bontrager Elite, 35 mm, 13-degree, 80 mm length; Size: XL, Bontrager Elite, 35 mm, 13-degree, 90 mm length |
| Handlebar |
Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width |
| Saddle |
Bontrager Verse Elite, austenite rails, 145 mm width |
| Seatpost |
Size: S, Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length; Size: M, ML, Bontrager Line Dropper, 125 mm travel, internal routing, 31.6 mm, 395mm length; Size: L, XL, Bontrager Line Dropper, 150 mm travel, internal routing, 31.6 mm, 440mm length Type:Â Dropper |
Groupset
| Rear Derailleur |
SRAM GX Eagle AXS, T-Type |
|---|---|
| Crank |
Size: S, M, SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, 170 mm length; Size: ML, L, XL, SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, 175 mm length |
| Shifters |
SRAM AXS POD |
| Cassette |
SRAM Eagle XS-1275, T-Type,10-52, 12-speed |
| Chain |
SRAM GX Eagle, T-Type, 12-speed |
| Brakes |
SRAM Level Bronze 2-piston hydraulic disc Type:Â Hydraulic Disc |
Wheels
| Rims |
Front: Bontrager Kovee Comp 25, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle, 29″, Rear: Bontrager Kovee Comp 25, Tubeless-Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29″ |
|---|---|
| Tires |
Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29×2.20″ |
| Disc Rotors |
Size: S, M, ML, L, XL, SRAM CenterLine, 6-bolt, round-edge, 160 mm; Size: S, M, ML, L, XL, SRAM CentreLine, 6-bolt, round-edge, 180 mm |
