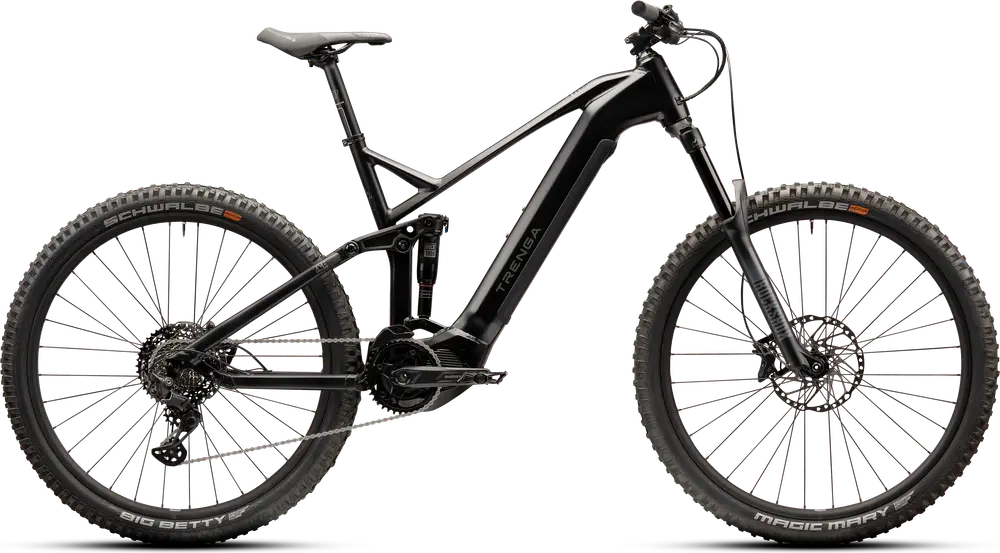

Trenga AME 5.0 2024

Aluminium 6061 TFW, Motor mount: Shimano Steps, Cable routing: partially integrated, Axle mount: thru axle 12×148 mm, Tire clearance: 75 mm

RockShox 35 Gold RL, Stiff 35 mm stanchions, Axle mount: thru axle 15×110 mm, Fork tube: 1 1/8in to 1.5in, Travel: 160 mm, Suspension: DebonAir air spring, Damping: MotionControl with lockout, Max. tire width: 81 mm

STEPS, press-fit

TRENGA aluminum rigid, length: depending on frame height, fork clamp : 28.6 mm, handlebar clamp : 31.6 mm, angle: 5

TRENGA, width: 760 mm, handlebar clamp : 31.8 mm, backsweep: 11

Selle Italia X3 E-Bike Climb Control, ultra-flat profile, low weight, surface made of easy-care microfiber

TRENGA aluminium rigid, diameter: 30.9 mm, length: 400 mm, clamping: 2-way, offset: 10 mm

TDE Alloy MTB Platform HPL, large, safe tread, aluminum pedal body, reflectors

Shimano Deore RD-M5130 SGS, Shadow RD Plus design for optimal chain guidance, Optimized for LINKGLIDE, Smooth and reliable shifting, Stabilizer reduces chain slap, Largest pinion max. 43 teeth

Shimano Steps FC-EM600, Specially developed for e-bikes, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm, Robust 24 mm bottom bracket axle

Shimano Deore SL-M5130, Rapidfire Plus – smooth, fast shifting, variable I-SPEC EV mounting, 2-way release allows shifting with thumb or index finger

Shimano CS-LG600-10, 10-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43, increased wear resistance, Shimano CS-LG400-10, 10-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43, increased wear resistance

Shimano CN-HG601, HG-X 11-speed, optimized shifting behavior, dirt-repellent design, SIL-TEC coating for longer durability

Shimano Steps SM-CDE80, For 53 mm and 56.5 mm chain line, Precise adjustment of the guide, Compatible chainrings: 38, 36, 34 teeth

Shimano Deore M6100 / M6120, hydraulic disc brake, powerful and finely dosed thanks to servo wave, variable I-SPEC EV mounting, brake lever: BL-M6100 2-finger, rear brake: BR-M6100 2-piston, rear brake pad: G05A-RX resin, front brake: BR-M6120 4-piston, front brake pad: N03A-RX resin with cooling fins

Ryde Rival 30 Disc, robust, lightweight MTB rim, especially for wide tires, tubeless ready, 32 holes, ETRTO: 30-622

Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Black

Schwalbe Magic Mary Evo, Size: 29×2.60, Top downhill and enduro all-rounder, Maximum braking traction and cornering grip, Good damping and easy rolling thanks to ADDIX Soft Compound, Tubeless Easy

Shimano STEPS EP800, Max. torque: 85 Nm, Rated continuous power: 250 W, 20% higher range, Lower heat generation, Lighter, quieter and more compact, Configurable via E-TUBE-PROJECT app

Shimano Shimano BT-E8035-L, integrated in the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.9 kg

Shimano STEPS EW-SW300, compact on/off switch, partially integrated in the frame

Shimano Steps SC-EM800, compact and flat, flexible mounting, shows support modes on 1.6 inch display, can be adjusted by the rider via E-TUBE app, wireless connection via smartphone/tablet

STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44 mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery

Abus PLUS Shimano, battery lock against battery theft, robust X-Plus lock mechanism
