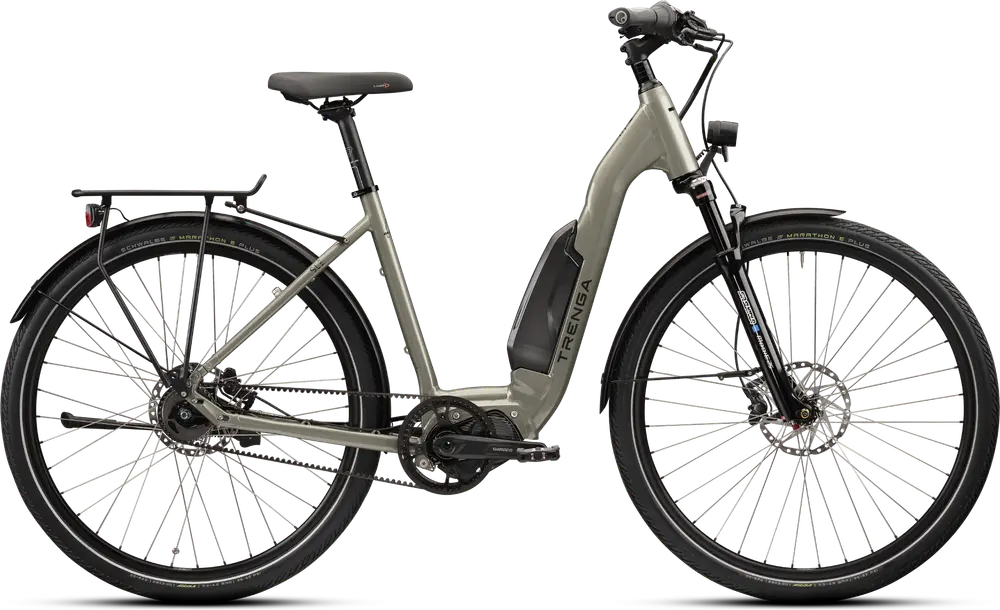

Trenga SLE 10.2 Gates 2024

Aluminium 6061 TFW, Motor mount: Shimano, Cable routing: partially integrated, Axle mount I: thru axle 12×142 mm, Axle mount II: hub gear 135 mm, Brake: Postmount Disc 160, Tire clearance: 55 mm with plates, mudguard and luggage carrier eyelets

Suntour Mobie E25 LO, axle mount: thru axle 15×100 mm, steerer tube: 1 1/8in to 1.5in, travel: 75 mm, suspension: steel spring, damping adjustment: lockout, max. tire width: 55 mm, disc brake mount

STEPS, press-fit

TRENGA aluminum rigid, length: depending on frame height, fork clamp : 28.6 mm, handlebar clamp : 31.8 mm, angle: 17

TRENGA, width: 620 mm, handlebar clamp : 31.8 mm, backsweep: 25

Selle Royal Lookin EVO Moderate Women, all-rounder for commuting and touring, anatomically adapted women’s saddle, extremely comfortable Royalgel padding, saddle frame made of 100% recycled plastic

TRENGA aluminum rigid, diameter: 31.6 mm, length: 400 mm, clamping: 2-way, offset: 10 mm

TRENGA C016, Large, rubberized tread, aluminum pedal body, reflectors

Shimano Steps FC-EM600, Specially developed for e-bikes, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm, Robust 24 mm bottom bracket axle

Shimano Nexus SL-C7000 5-speed, ergonomic twist grip shift lever, easy-to-read optical gear display, smooth and easy operation

Shimano Deore BR-T6000, hydraulic disc brake, powerful, predictable braking performance, compatible with ICE-Tech pads, brake lever: BL-T6000 3-finger, brake calliper: BR-M6000 2-piston, brake pad: G05A-RX Resin

Ryde Andra 321, light and stable, ideal for modern e-bikes, 36 hole, ETRTO: 21-622

Schwalbe Marathon E-Plus Reflex, Size: 50-622, Especially for e-bikes, Grippy, durable ADDIX-E compound, Puncture-proof thanks to Smart DualGuard, Reflective strips

Shimano STEPS EP800, Max. torque: 85 Nm, Rated continuous power: 250 W, 20% higher range, Lower heat generation, Lighter, quieter and more compact, Configurable via E-TUBE-PROJECT app

Shimano BT-E8010, integrated on the down tube, voltage: 36V, capacity: 14 Ah, energy content: approx. 504 Wh, weight: approx. 2.6 kg

Shimano Steps SC-E6100, Large, easy-to-read display, Display of all functions such as battery, range, support mode, Wireless communication with smartphone apps, E-TUBE PROJECT – app for personalized adjustment

STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44 mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery

Front: Busch & Mller Lumotec IQ-X E-Bike, 150 Lux, large area light field, daytime running light, close-range illumination, aluminum housing, Rear: Busch & Mller Toplight Line E Brex, brake and emergency brake light function, super bright with high visibility, sensor technology: no connection to the brake required, integrated Z-large area reflector, Busch & Mller Toplight Dart Brex, LED rear light for e-bikes, brake and emergency brake light function, integrated Z-large area reflector

SKS Evo ALU 65mm, Made of high-quality aluminum, Robust and rigid, Innovative light cable routing system, ESC safety system, Width: 65 mm, Max. tire width: 60 mm

Racktime Stand-It, SNAPIT compatible, load capacity: 25 kg, spring clamp can be easily retrofitted, material: aluminum

Abus battery lock, Abus PLUS battery lock against battery theft
