Trenga XME 5.0i 2024
Compare Wishlist

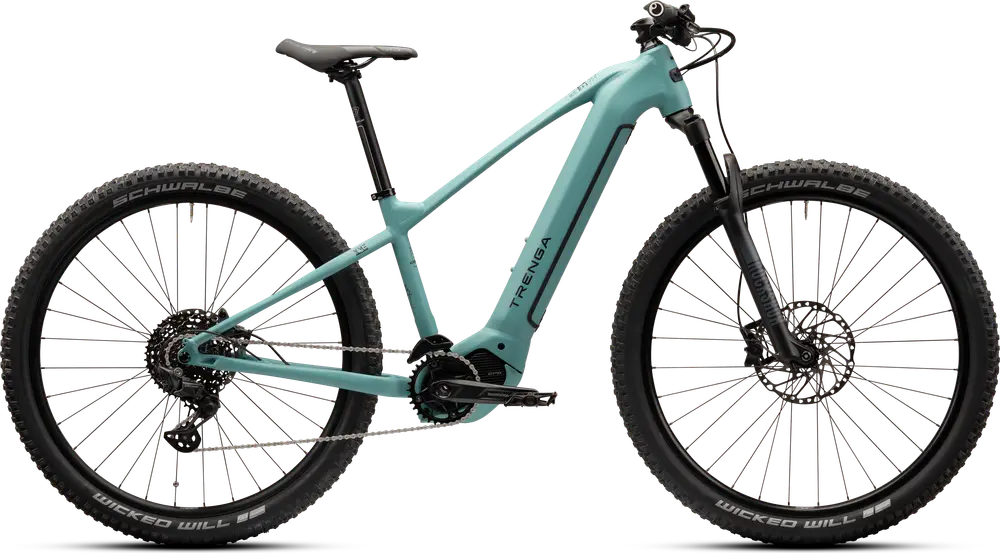

Trenga XME 5.0i 2024

Sku: E-33982192

US $2,519

Available in stock

*
Compare Wishlist
Brand:
Description

Build

Frame

Aluminium 6061 TFW, Motor mount: Shimano Steps, Cable routing: partially integrated, Axle mount: thru axle 12×148 mm, Brake: Postmount Disc 180, Tire clearance: 29inx2.6in (65 mm with plates /75 mm without), Brake: Postmount Disc 180 mm

BB Standard: STEPS, Press Fit

Tire Clearance: 2.6in
Fork

RockShox 35 Gold RL, Stiff 35 mm stanchions, Axle mount: thru axle 15×110 mm, Fork tube: 1 1/8in to 1.5in, Travel: 120 mm, Suspension: DebonAir air spring, Damping: MotionControl with lockout, Max. tire width: 81 mm

Travel: 120mm

Spring Type: Air
Bottom Bracket

STEPS, press-fit
Stem

TRENGA aluminum rigid, length: depending on frame height, fork clamp : 28.6 mm, handlebar clamp : 31.6 mm, angle: 5
Handlebar

TRENGA, width: 760 mm, handlebar clamp : 31.8 mm, backsweep: 11
Saddle

Selle Italia X3 E-Bike Climb Control, ultra-flat profile, low weight, surface made of easy-care microfiber
Seatpost

TRENGA aluminium rigid, diameter: 30.9 mm, length: 400 mm, clamping: 2-way, offset: 10 mm

Type: Rigid
Pedals

TDE Alloy MTB Platform HPL, large, safe tread, aluminum pedal body, reflectors

Groupset

Rear Derailleur

Shimano Deore RD-M5130 SGS, Shadow RD Plus design for optimal chain guidance, Optimized for LINKGLIDE, Smooth and reliable shifting, Stabilizer reduces chain slap, Largest pinion max. 43 teeth
Crank

Shimano Steps FC-EM600, Specially developed for e-bikes, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm, Robust 24 mm bottom bracket axle
Shifters

Shimano Deore SL-M5130, Rapidfire Plus – smooth, fast shifting, variable I-SPEC EV mounting, 2-way release allows shifting with thumb or index finger
Cassette

Shimano CS-LG400-10, 10-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43, increased wear resistance
Chain

Shimano CN-HG701, 11-speed HYPERGLIDE, SIL-TEC treatment for better durability, reinforced construction also for e-bikes
Chain Guide

Shimano Steps SM-CDE80, For 53 mm and 56.5 mm chain line, Precise adjustment of the guide, Compatible chainrings: 38, 36, 34 teeth
Brakes

Shimano Deore M6100 / M6120, hydraulic disc brake, powerful and finely dosed thanks to servo wave, variable I-SPEC EV mounting, brake lever: BL-M6100 2-finger, rear brake: BR-M6100 2-piston, rear brake pad: G05A-RX resin, front brake: BR-M6120 4-piston, front brake pad: N03A-RX resin with cooling fins

Type: Shimano Deore Hydraulic Disc

Wheels

Rims

Ryde Rival 26 Disc, Ideal for MTB, E-Bike and Trekking, Tubeless Ready, 32 holes, ETRTO: 26-622
Spokes

Sapim Leader, Material: Stainless steel, Diameter: 2.0 mm, Color: Black
Tires

Schwalbe Wicked Will, size: 29×2.60, all-rounder with a wide range, fast-rolling middle section, non-slip shoulder knobs for cornering grip, durable ADDIX compound, Tubeless Easy
