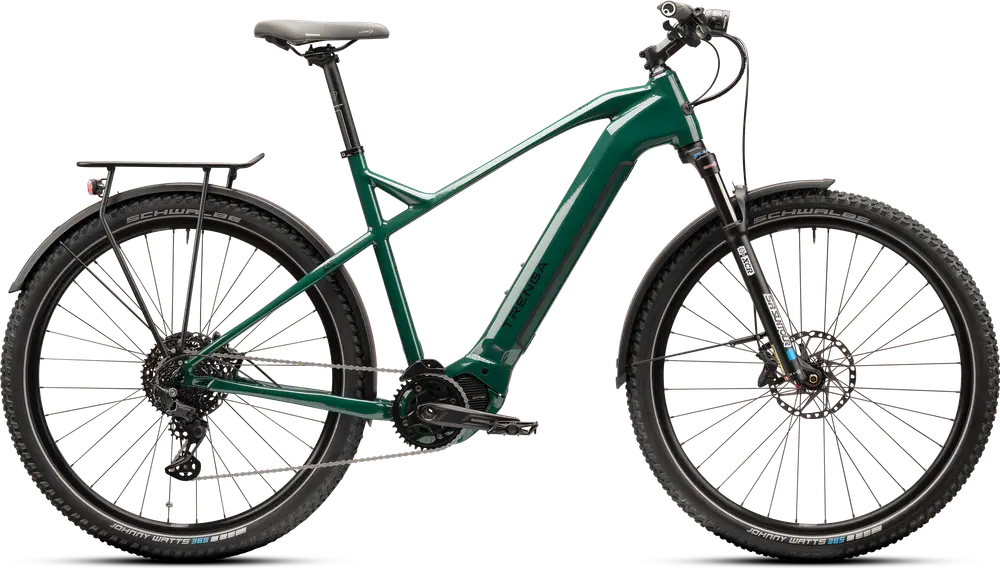

Trenga XME 5.0i AT 2024

Aluminium 6061 TFW, Motor mount: Shimano Steps, Cable routing: partially integrated, Axle mount: thru axle 12×148 mm, Brake: Postmount Disc 180, Tire clearance: 65 mm with plates / 75 mm without, Mudguard and luggage carrier eyelets

Suntour XCR 34 LO, axle mount: thru axle 15×110 mm, steerer tube: 1 1/8in to 1.5in, travel: 100 mm, suspension: steel spring, damping adjustment: lockout

STEPS, press-fit

TRENGA aluminum rigid, length: depending on frame height, fork clamp : 28.6 mm, handlebar clamp : 31.8 mm, angle: 17

TRENGA, width: 680 mm, handlebar clamp : 31.8 mm, backsweep: 9, rise: 20 mm

Selle Italia ST-5 Flow, combines comfort with sporty design, FLOW opening relieves the perineal area, gel padding with Soft-Tek cover, Hi-Viz inserts increase visibility in the dark

TRENGA aluminium rigid, diameter: 30.9 mm, length: 400 mm, clamping: 2-way, offset: 10 mm

TDE Alloy MTB Platform HPL, large, safe tread, aluminum pedal body, reflectors

Shimano Deore RD-M5130 SGS, Shadow RD Plus design for optimal chain guidance, Optimized for LINKGLIDE, Smooth and reliable shifting, Stabilizer reduces chain slap, Largest pinion max. 43 teeth

Shimano Steps FC-EM600, Specially developed for e-bikes, Crank length: 165 mm or 170 mm, depending on frame height, Q-factor: 177 mm, Robust 24 mm bottom bracket axle

Shimano Deore SL-M5130, Rapidfire Plus – smooth, fast shifting, variable I-SPEC EV mounting, 2-way release allows shifting with thumb or index finger

Shimano CS-LG400-10, 10-speed LINKGLIDE, gradation: 11-13-15-17-20-23-26-30-36-43, increased wear resistance

Shimano CN-HG601, HG-X 11-speed, optimized shifting behavior, dirt-repellent design, SIL-TEC coating for longer durability

Shimano Steps SM-CDE80, For 53 mm and 56.5 mm chain line, Precise adjustment of the guide, Compatible chainrings: 38, 36, 34 teeth

Shimano Deore M6100 / M6120, hydraulic disc brake, powerful and finely dosed thanks to servo wave, variable I-SPEC EV mounting, brake lever: BL-M6100 2-finger, rear brake: BR-M6100 2-piston, rear brake pad: G05A-RX resin, front brake: BR-M6120 4-piston, front brake pad: N03A-RX resin with cooling fins

Ryde Rival 26 Disc, Ideal for MTB, E-Bike and Trekking, Tubeless Ready, 32 holes, ETRTO: 26-622

Schwalbe Johnny Watts 365, size: 29×2.60, all-season tire thanks to ADDIX Four Season Compound, secure grip on all surfaces, double defense puncture protection, specially developed for e-bikes, reflective strips

Shimano STEPS EP600, Max. torque: 85 Nm, Rated continuous power: 250 W, Light, quiet and compact, Configurable via E-TUBE-PROJECT app

Shimano Steps SC-EN 610, Large 2.8 color LCD display, Quick display change, Customizable display via E-TUBE app, Variable mounting

STEPS charger Shi EC-E8004, charging current (max.): 4.6 A, battery charging voltage: 42 V, size: 160 x 70 x 44 mm, weight: including cable approx. 450 g, charging time: 4 h for 504 Wh battery, approx. 4.8 h for 630 Wh battery

Rear: Busch & Mller Toplight 2-C, LED rear light for luggage carrier mounting, LINE-TEC light clamps, integrated Z-large area reflector

SKS Bluemels matt black, sandwich construction made of aluminum/plastic, robust, rigid and corrosion-resistant, innovative light cable routing system, ESC safety system, width: 75 mm, max. tire width: 66 mm

Racktime Boost-it IMM, SNAPIT compatible, load capacity: 25 kg, spring clamp can be easily retrofitted, material: aluminum

Abus PLUS Shimano, battery lock against battery theft, robust X-Plus lock mechanism

Hebie rear triangle 661, material: steel, coated, wide base for secure stand, load capacity up to 25 kg, stepless length adjustment without tools, dropout direct mounting KSA 40

TRENGA Single Bell, Material: Aluminium, Bell clapper rotatable, Loud and sonorous
