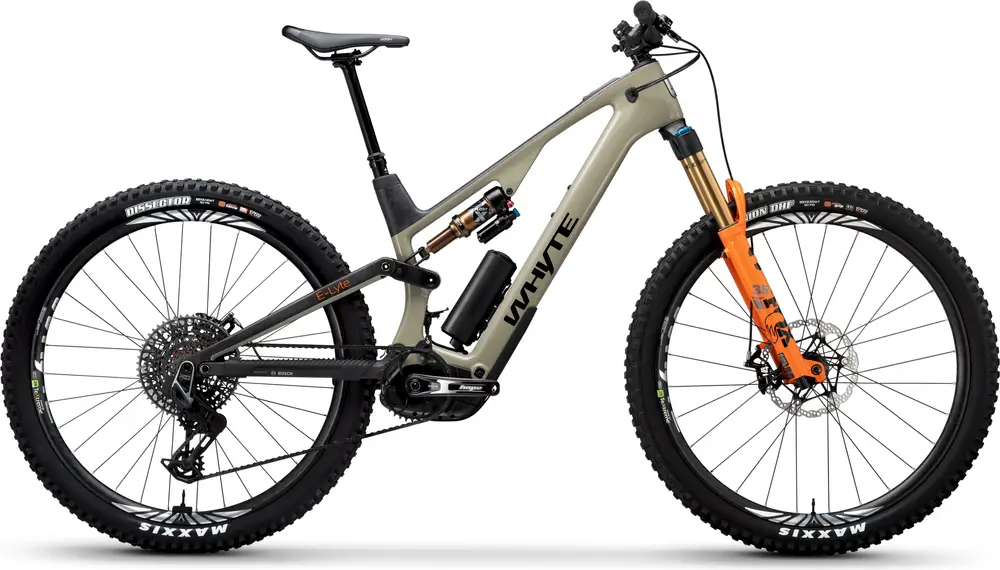

Whyte E-Lyte 150 Works 2024

Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip2 damper, tapered steerer, 110m x 15mm Kabolt axle

Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm

N/A

FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing

Whyte Trail full CNC, 32mm extension, 35mm bar bore

Race Face Next R Carbon, 20mm rise, 35mm bar bore, 800mm width

Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail

Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever

Fibre reinforced composite platform

Whyte Enduro lock-on

SRAM XO T-Type AXS, 12 speed

N/A

Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type

SRAM AXS Pod, right, MMX, 12 speed

SRAM XS 1295, T-Type, 10-52T, 12 speed

SRAM XO T-Type, 12 speed

Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor

Hope Tech 4

Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear

DT Swiss New Champion 2.0mm, black stainless, brass nipples

Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole

Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole

Maxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear
