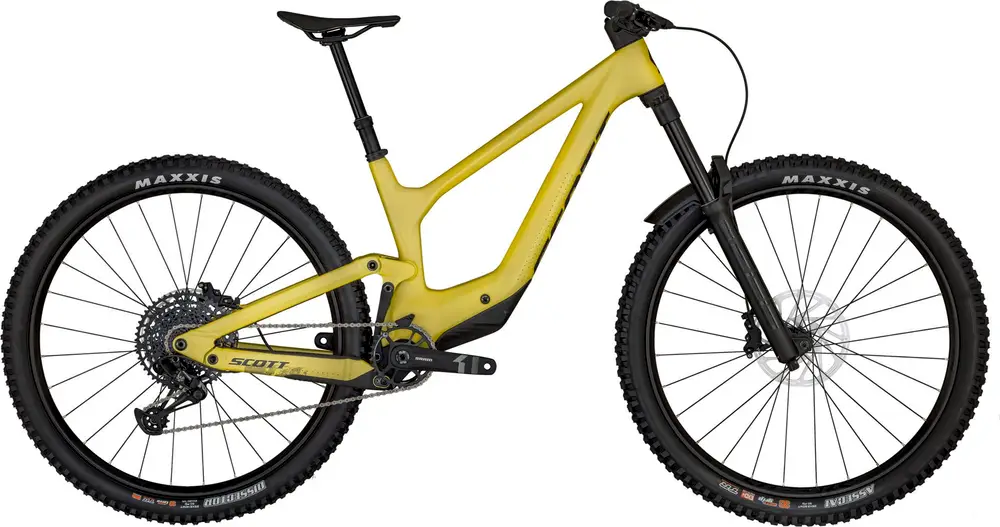

Scott Ransom 920 2024 Overview
Build
| Frame |
Ransom Carbon HMF Mainframe with Alloy 6061 Swingarm; Integrated Suspension Technology; 6 Link kinematic / Adjustable head angle; Syncros Cable Integration System; BB92 / UDH Interface / 12x148mm with 55mm Chainline / MX Ready BB Standard:Â BB86/BB92, Press Fit Hanger Standard:Â UDH |
|---|---|
| Fork |
RockShox Zeb Select+ Charger 3; HSC – LSC – LSR adjustable / 15x110mm Maxle stealth axle; 42mm offset / Tapered Steerer; / 170mm travel Travel:Â 170mm |
| Shock |
FOX FLOAT X NUDE EVOL Piggy Back Trunnion / SCOTT custom w. travel / geo adj.; 3 modes: Climb-Ramp Control-Descend; Custom large Air volume / Comp & Reb. Adj.; Travel 170-130-Climb / T205X65mm / Bearing Hardware Travel:Â 170mm |
| Bottom Bracket |
SRAM DUB PF integrated / shell 41x92mm |
| Headset |
Syncros – Acros Angle adjust & Cable Routing HS System; +-0.6 head angle adjustment; ZS56/28.6 ZS56/40 MTB |
| Stem |
Syncros AM 2.0; Syncros Cable Integration System; 4 rise / 6061 Alloy / 31.8mm / 40mm |
| Handlebar |
Syncros Hixon 2.0 Alloy 6061 D.B.; Size S & M 12mm Rise / Size L & XL 20mm Rise / back sweep 8 / 780mm; Syncros Endurance lock-on grips |
| Saddle |
Syncros Tofino 2.0; Crmo Rails |
| Seatpost |
Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm; S size 140mm / M size 180mm / L & XL size 210mm Type:Â Dropper |
Groupset
| Rear Derailleur |
SRAM NX Eagle 12 Speed |
|---|---|
| Crank |
SRAM X1 1000 Eagle DUB Boost; 32T / Chainline 55mm |
| Shifters |
SRAM SX Eagle Trigger |
| Cassette |
SRAM NX / PG1210 / 11-50 T |
| Chain |
SRAM CN SX Eagle |
| Chain Guide |
SCOTT custom |
| Brakes |
SRAM DB8 4 Piston Disc Type:Â Hydraulic Disc |
Wheels
| Rims |
Syncros Revelstoke 2.5 6 Bolt; F: 15x110mm; R: 12x148mm Boost; 30mm Tubeless ready rim 28Hr; Syncros Axle w/Removable Lever with Tool |
|---|---|
| Tires |
Front: Maxxis Assegai / 2.5″ / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp, Rear: Maxxis Dissector / 2.4″ / 120TPI Foldable / DD/ TR / 3C Maxx Terra |
| Disc Rotors |
SRAM Centerline Rotors F&R 200mm |
