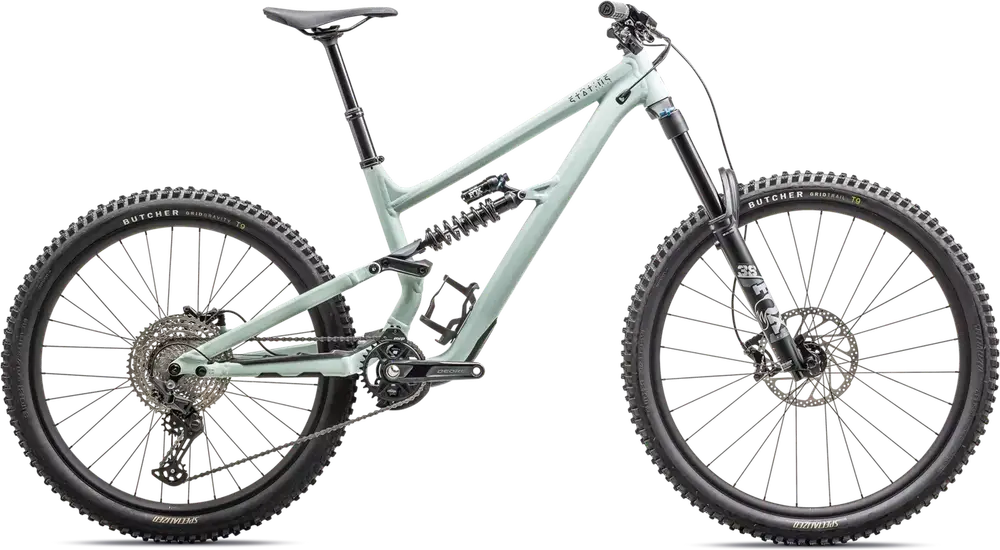

Specialized Status 170 2 2024 Overview
Build
| Frame |
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel BB Standard:Â BSA, Threaded Hanger Standard:Â UDH Colors:Â Satin Harvest Gold Tint / Obsidian / Dune White; Satin Obsidian / Dune White; Satin White Sage / Rusted Red |
|---|---|
| Fork |
FOX FLOAT 38 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 170mm of travel Travel:Â 170mm Spring Type:Â Air |
| Shock |
FOX DHX Performance, Ride Dynamics Trail Tune, S1:230x60mm, S2-S5:230×62.5mm Travel:Â 170mm Spring Type:Â Coil |
| Bottom Bracket |
BSA, threaded |
| Stem |
Alloy Trail Stem, 35mm bar bore |
| Handlebar |
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width, S2-S5: 800mm width |
| Saddle |
Bridge Comp, Hollow Cr-mo rails, 143mm |
| Seatpost |
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm Type:Â Dropper |
| Grips |
Deity Knuckleduster |
Groupset
| Rear Derailleur |
Shimano Deore, M6100, 12pd, Shadow Plus |
|---|---|
| Crank |
Shimano Deore, M6120, 32T ring, 55mm chainline, S1-4:165mm, S5: 170mm |
| Shifters |
Shimano Deore, M6100, I-Spec EV, 12 speed |
| Cassette |
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t |
| Chain |
Shimano Deore M6100, 12spd |
| Brakes |
Front: TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm, Rear: TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm Type:Â Hydraulic Disc |
Wheels
| Rims |
Specialized, hookless alloy, 30mm inner width, tubeless ready |
|---|---|
| Spokes |
DT Swiss Industry |
| Front Hub |
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
| Rear Hub |
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
| Tires |
Front: Butcher, GRID TRAIL casing, GRIPTON T9 compound, 2Bliss Ready, 29×2.3″, Rear: Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 27.5×2.3″ |
