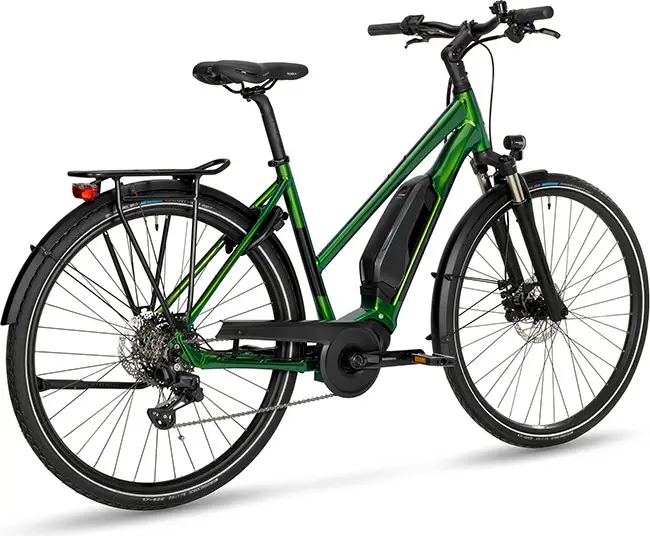

Stevens E-Bormio LT 2025
Stevens E-Bormio LT 2025 - Image 2
Stevens E-Bormio LT 2025 - Image 3

Stevens E-Bormio LT 2025

$1,815.00
In Stock

The 2025 Stevens E-Bormio LT e-urban electric bike pairs a Shimano Steps E5000 40 Nm motor with a 504 Wh battery.

  • The Suntour NX1 coil fork has 63 mm travel.
  • A Shimano Deore rear derailleur handles 10 speeds.
  • Shimano hydraulic disc brakes use BR-MT200 calipers throughout.
  • Schwalbe Marathon tires measure 47-622 with reflective stripes.
  • The Racktime Eco rear rack uses SNAP IT.
In Stock
Add to wishlist
  • Ready to Ride guarantee 100% Built.
  • Safe International Doorstep Bike Shipping.
SKU: BR296835
Category:
Brand:

Description

Conquer daily urban routes with low-step convenience on the Stevens E-Bormio LT 2025 electric bicycle, pairing a 40Nm Shimano Steps E5000 motor with a 10-speed Shimano Deore Linkglide drivetrain. The Aluminium 6061 step-through frame features an SR Suntour NX1-Coil LO 63mm suspension fork with lockout, a semi-integrated Shimano Steps 504Wh battery, Shimano BR-MT200 hydraulic disc brakes, and an angle-adjustable stem.

Equipped with a Racktime Eco IMM rear luggage carrier with SNAP IT system, SKS mudguards, a Trelock I Veo 50-lux headlight, a Trelock Duo Flat taillight, an Oxygen E-Scorpo 680mm handlebar, a Selle Royal Nuvola Lady saddle, a 30.9mm rigid seatpost, ATB Alu Pro Reflex pedals, a Shimano SC-E5000 display, a Shimano 2A charger, and a STEVENS D85 bell, it is finished in Metallic Green on Oxygen RM-26 Disc rims with Schwalbe Marathon 47-622 reflective tires.

Key Specifications of the Stevens E-Bormio LT 2025

  • Shimano Steps E5000 mid-drive motor delivers 40Nm of smooth assist torque.
  • Semi-integrated Shimano Steps 504Wh battery supplies dependable commuting power.
  • Shimano Deore 10-speed Linkglide transmission shifts across an 11-43T cassette.
  • SR Suntour NX1-Coil LO suspension fork offers 63mm of travel with lockout.
  • Shimano BR-MT200 hydraulic disc brakes ensure consistent all-weather stopping.
  • Low-step Aluminium 6061 frame allows comfortable step-through mounting.
  • Schwalbe Marathon 47-622 tires feature GreenGuard puncture protection.
  • Racktime Eco IMM rear carrier accommodates commuter bags and panniers.
  • Trelock I Veo 50-lux headlight provides dependable night visibility.
  • Oxygen Versa II adjustable stem enables personalized cockpit positioning.

Who This Fits

Urban commuters and leisure cyclists seeking an accessible step-through electric bike with gentle mid-motor assist and dependable 10-speed gearing will appreciate this build. The low-step frame opening makes frequent stops in heavy traffic effortless.

Riders traveling in all weather conditions utilize the integrated Trelock lighting, full SKS fenders, and durable Racktime rear luggage rack. The front suspension fork and plush saddle smooth out cobblestones and road chatter across town.

Compatibility and Installation

The chassis features QR5x100mm front and QR5x135mm rear quick-release axles on Formula hubs, a STEPS press-fit bottom bracket, and a STEVENS AH 1 1/8-inch headset. The 30.9x320mm Oxygen E-Scorpo rigid seatpost requires a minimum insertion depth of 100mm.

Recharging is handled via the supplied Shimano 2A charger connecting to the frame battery. The angle-adjustable stem allows quick customization of handlebar height and reach.

Before Ordering the Stevens E-Bormio LT 2025

Review standard low-step sizing recommendations: 46 cm / Small (155 to 168 cm / 5’1″ to 5’6″), 50 cm / Medium (168 to 180 cm / 5’6″ to 5’11”), and 54 cm / Large (178 to 190 cm / 5’10” to 6’3″). Verify that the 40Nm motor output and 504Wh battery capacity meet your daily route requirements, and check standover clearance for comfortable stopping.

Stevens E-Bormio LT 2025 Specs

BrandStevens
FrameAluminium 6061, O.L.D.: 135 mm, Brake: postmount disc 6", BB: Shimano Steps, Cable routing: internal, Fender + rack mounts BB Standard: STEPS, Press Fit Color: Metallic Green
ForkSR Suntour NX1-Coil LO, Travel: 63 mm, Coil spring, Lockout, Steerer 1 1/8", O.L.D.: 100 mm, Brake: postmount disc 6", Fender mounts Travel: 63mm Spring Type: Coil
Bottom BracketSTEPS, press-fit
HeadsetSTEVENS AH 1 1/8", Upper bearing cup: ZS44/28.6, Lower bearing cup: ZS44/30
StemOxygen Versa II, adjustable, Handlebar clamp: 31.8 mm, Angle: adjustable (0 - 90)
HandlebarOxygen E-Scorpo, Width: 680 mm, Backsweep: 5, Rise: 25 mm, Clamp: 31.8 mm
SaddleSelle Royal Nuvola Lady
SeatpostOxygen E-Scorpo, Length: 320 mm, Diameter: 30,9 mm, Insertion depth: min. 100 mm Type: Rigid
PedalsATB Alu Pro Reflex
Rear DerailleurShimano Deore Shadow+, RD-M5130-GS, 10-speed, Total capacity: 32 T
CrankShimano FC-E5010, BB type: Shimano Steps
ShiftersShimano Deore, SL-M5130, 10-speed, Linkglide
CassetteShimano CS-LG400-10, 10-speed, Combination: 11-13-15-17-20-23-26-30-36-43 T, LINKGLIDE
ChainShimano CN-LG500, LINKGLIDE
BrakesShimano BR-MT200, Hydraulic disc brake Type: Shimano Hydraulic Disc
Brake LeversShimano BL-MT200, 3 finger
RimsOxygen RM-26 Disc, ETRTO: 26 x 622
Front HubFormula CL-51, Axle: QR5x100 mm
Rear HubFormula CL-52, Axle: QR5x135 mm
TiresSchwalbe Marathon, Tire size: 47-622, Endurance compound, GreenGuard, Reflective stripes
MotorShimano Steps E5000, Continuous rated power: 250 W, Max. torque: 40 Nm, Breakaway at 25 km/h (15.5 mph), No of notches: 3 drive modes with support levels 70-230 % plus walk assistance, Mileage shimano-steps.com
BatteryShimano Steps BT-E8010, Capacity: 504 Wh/14.0 Ah, Voltage: 36 V, Technology: Li-Ion
DisplayShimano SC-E5000
ChargerShimano 2A charger
LightsFront: Trelock I Veo, Illuminance: 50 lux, Rear: Trelock Duo Flat, Stationary taillight
FendersSKS mudguards
RacksRacktime Eco IMM rear rack, System: SNAP IT
BellSTEVENS D85 bell

Stevens E-Bormio LT 2025 Included:

  • Integrated Shimano Steps 504Wh battery.
  • Shimano battery charger and power cable.
  • Battery lock keys and code card.
  • Shimano LCD display and handlebar remote.
  • Integrated front and rear LED lights.
  • Pre-installed carrier, mudguards, and kickstand.
  • Platform pedals, reflectors, and bell.
  • Hydraulic disc brake pad transport retainers.
  • Bicycle manuals and manufacturer warranty card.

Stevens E-Bormio LT 2025 General Questions

Q: What terrain is the Stevens E-Bormio LT built to handle?

A: The Stevens E-Bormio LT handles paved urban streets, canal towpaths, and hard-packed park gravel with front suspension comfort and mid-step clearance.

Q: How do you care for the front suspension fork?

A: Wipe SR Suntour NX1-Coil stanchions clean after wet rides, lubricate upper dust seals periodically, and use the crown lockout lever on smooth tarmac climbs.

Q: How does the trapezoidal mid-step frame benefit riders?

A: The sloping top tube provides lower standover height for quick foot-down stops while maintaining the lateral frame rigidity needed when riding with loaded panniers.

Q: What tires come equipped for puncture protection?

A: The wheels run 47-622 Schwalbe Marathon tires featuring a 3 mm GreenGuard puncture protection layer and reflective sidewall stripes for safe night commuting.
