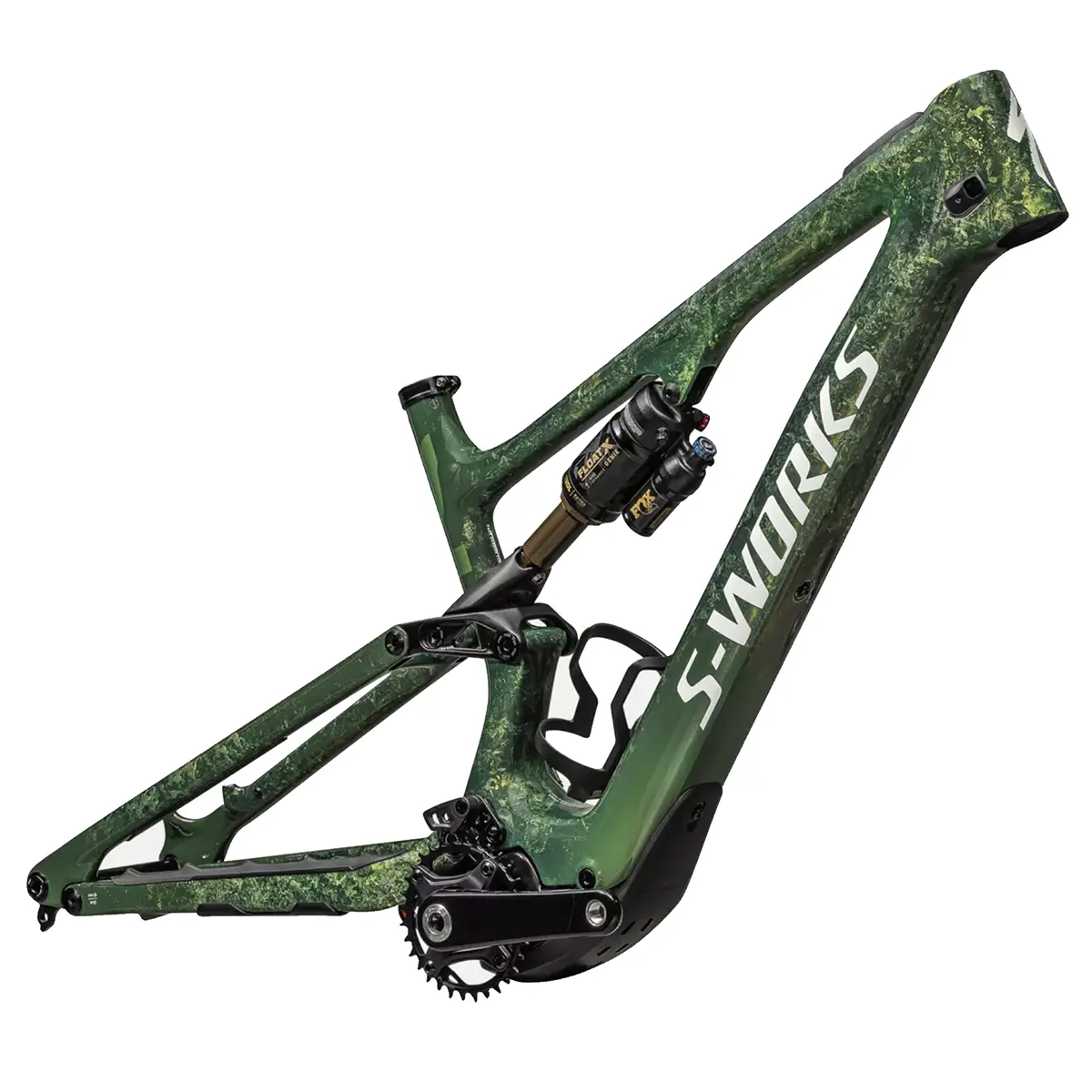

Specialized S-Works Turbo Levo SL 2 Carbon e-MTB Frameset
The Specialized S-Works Turbo Levo SL 2 electric mountain bike frameset combines a 320W, 50Nm Specialized 1.2 SL motor with a 320Wh battery.
- The FACT 11m carbon frame provides 150mm of travel.
- Frame accepts 27.5-inch and 29-inch wheels.
- MasterMind TCU supports MicroTune assist adjustment controls and settings.
- FOX FLOAT X shock uses size-dependent dimensions.
- Frameset weighs 7.55 kg in S4 size.
- Ready to Ride guarantee 100% Built.
- Safe International Doorstep Bike Shipping.
Description
Delivering 50Nm of torque and 320W of peak power, the Specialized S-Works Turbo Levo SL 2 Frameset electric trail module integrates a Specialized 1.2 SL motor with a 320Wh downtube battery. The FACT 11m carbon chassis features an alloy shock extension, 150mm of rear travel paired with a FOX FLOAT X Factory rear shock with Specialized GENIE Shock Tech, and mixed-wheel compatibility.
Supplied with a MasterMind TCU display, a 48V custom charger, a custom wiring harness, a SWAT CC steerer tool, a 165mm SRAM Eagle crankset with a 32T T-Type chainring and integrated guard, and a 38.6mm alloy seat binder, it weighs 7.55 kg (16 lb 10.3 oz) in size S4 and is presented in Team Yellow Tint. The front fork, wheelset, brakes, and cockpit must be purchased separately.
Key Specifications of the Specialized S-Works Turbo Levo SL 2
- Specialized 1.2 SL motor generates 50Nm torque and 320 watts peak output.
- Integrated 320Wh battery supplies dependable energy for long trail adventures.
- FACT 11m carbon frame provides 150mm of supple rear wheel travel.
- FOX FLOAT X Factory rear shock features specialized GENIE Shock Technology.
- MasterMind TCU unit displays battery percentage, speed, and MicroTune telemetry.
- SRAM Eagle 165mm crankset includes an integrated protective chainring bash guard.
- Adjustable head tube angle and bottom bracket height chips customize trail geometry.
- Chassis geometry is compatible with both 29-inch and 27.5-inch rear wheels.
- SWAT CC steerer tube tool secures a multi-tool and quick-link.
- Certified to UL 2849 e-system and UL 2271 battery safety compliance standards.
Who This Fits
Trail riders seeking an ultra-lightweight electric mountain bike with adjustable geometry and 150mm of travel will value this module. The GENIE shock technology provides a supportive mid-stroke platform on climbs with bottom-out control on large trail features.
Custom builders who prefer customizable wheel configurations benefit from the flip-chip link that accommodates full 29-inch setups or mixed mullet configurations. The lightweight SL motor delivers natural assistance that mirrors natural pedaling cadence.
Build Considerations
This trail frameset requires a 150mm or 160mm travel Boost suspension fork (15x110mm), a 12x148mm Boost rear wheel, SRAM Eagle or Shimano 12-speed components, hydraulic disc brakes, and a 34.9mm dropper seatpost. The frame uses a 38.6mm seat collar standard.
The FOX FLOAT X Factory rear shock uses size-specific stroke lengths (210×52.5mm on S1, 210x55mm on S2 through S6). System diagnostics, MicroTune assist power levels, and ride recording interface wirelessly via the Specialized mobile application.
Before Ordering the Specialized S-Works Turbo Levo SL 2
Reference sizing guidelines based on Specialized S-Sizing: S1 (150 to 160 cm / 4’11” to 5’3″), S2 (157 to 173 cm / 5’2″ to 5’8″), S3 (165 to 180 cm / 5’5″ to 5’11”), S4 (173 to 188 cm / 5’8″ to 6’2″), S5 (178 to 193 cm / 5’10” to 6’4″), and S6 (188 to 203 cm / 6’2″ to 6’8″). Select your reach preference according to riding style and trail topography.
Specialized S-Works Turbo Levo SL 2 Frameset Specs
| Brand | Specialized |
| Model | S-Works Turbo Levo SL 2 Frameset |
| Product Type | Electric Full Suspension Mountain Bike Frameset |
| Motor | Specialized 1.2 SL Custom RX Trail Tuned Motor, 50Nm power, 320W power |
| Battery | Specialized SL1-320, fully integrated, 320Wh |
| UI/Remote | Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth, with handlebar remote |
| Charger | Custom charger, 48V system with SL system charger plug |
| Wiring Harness | Custom Specialized wiring harness |
| Frame | Levo SL carbon frame, FACT 11m carbon, alloy shock extension, 150mm travel, adjustable head angle, BB height, and compatible with 27.5 or 29" wheels |
| Rear Shock | FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever with 3-setting Open mode tuning range, LSR adjustment, S2-S6: 210x55mm, S1: FOX FLOAT Factory 210x52.5mm |
| Seat Binder | Alloy, 38.6mm |
| Crankset | SRAM Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, 165mm |
| Chainring | SRAM T-Type ring, 32t |
| SWAT | SWAT CC steerer tube integrated tool with chain tool and link |
| Color | Team Yellow Tint |
| Product ID | 277413 |
| Compliance Certification | As applicable, certified to UL 2849 e-system and/or UL 2271 battery by UL Solutions and/or SGS |
| Weight | 7.55 kg / 16 lb, 10.3 oz |
| Weight Size | S4 |
| Manufacturer Warranty | Lifetime warranty for the original owner. |
Specialized S-Works Turbo Levo SL 2 Frameset Included:
- S-Works FACT 11m Carbon trail chassis with adjustable headset angle and 150mm travel.
- Specialized 1.2 SL motor system with integrated 320Wh battery.
- MasterMind TCU top-tube display with micro-tune capability.
- Specialized custom 48V battery charging brick and power cord.
- FOX FLOAT X Factory rear shock with Kashima coat.
- Adjustable head angle cups and 12x148mm rear thru-axle.
- Bicycle User Manual Book.
- Official Manufacturer Warranty Card.
Specialized S-Works Turbo Levo SL 2 Frameset General Questions
Q: What is the motor and battery spec on Levo SL 2?
A: The S-Works Turbo Levo SL 2 features the upgraded Specialized SL 1.2 motor delivering 50 Nm and 320W. Paired with a fully integrated 320 Wh battery, it yields 43% more torque than previous generations. It seamlessly connects to the MasterMind TCU for wireless MicroTune power adjustment and real-time battery management.
Q: What rear shock is included on S-Works Levo SL 2?
A: The frameset includes a Fox Float X Factory rear shock equipped with Specialized's patented GENIE air-spring technology. It delivers 150 mm of travel, combining the linear mid-stroke traction of a coil spring with air bottom-out resistance. This proprietary damper increases grip by 57% while eliminating harsh bottom-outs on aggressive trail features.
Q: Can S-Works Turbo Levo SL 2 run full 29er wheels?
A: Yes, while configured standard as a 29 front / 27.5 rear mullet, it supports dual 29-inch wheels via a pivot-link flip-chip. Flipping the chip maintains balanced bottom bracket height and frame geometry when running larger rear rubber. This gives riders complete freedom to prioritize playful cornering agility or maximum rolling speed.
Q: What is the frameset weight of S-Works Turbo Levo SL 2?
A: The S-Works Turbo Levo SL 2 carbon frameset weighs approximately 7.55 kilograms (16.6 pounds) including motor, battery, and shock. Built with top-tier FACT 11m carbon, it provides exceptional lateral stiffness and agile trail handling. This ultralight construction makes it one of the most natural-feeling, nimble lightweight e-MTBs on the market.
