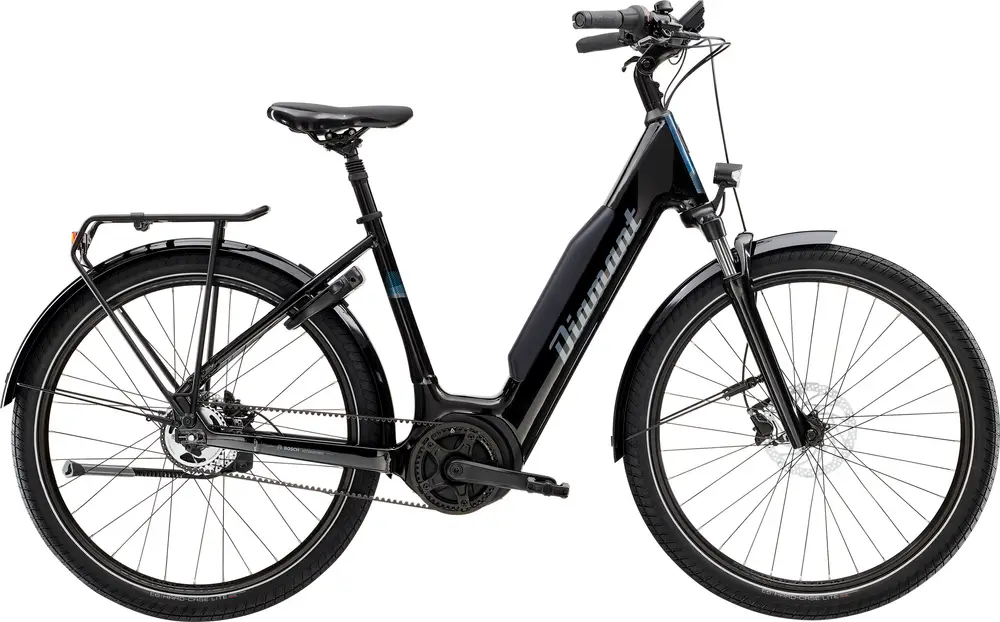

Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) 2025
Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) 2025 - Image 2
Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) 2025 - Image 3

Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) 2025

$3,668.00 Original price was: $3,668.00.$2,548.00Current price is: $2,548.00.
In Stock

The Diamant Beryll Esprit RT Gen 3 low-step urban electric bike is with a Bosch Performance Line motor rated at 250 W and 75 Nm.

  • Here, the Bosch PowerPack battery is as 545 / 725.
  • Gates CDX belt system uses a 130-tooth belt.
  • Here, the Shimano Nexus C7000 hub provides five-speed shifting.
  • Here, the SR Suntour NVX30 fork has 60 mm travel.
  • A MIK aluminum rack is included in the specifications.
In Stock
Add to wishlist
  • Ready to Ride guarantee 100% Built.
  • Safe International Doorstep Bike Shipping.
SKU: BR236500
Category:
Brand:

Description

Eliminate drivetrain grease and chain maintenance using the Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) 2025 low-step electric city bicycle, pairing a clean Gates CDX carbon belt drive and 5-speed Shimano Nexus coaster-brake hub with a 75Nm Bosch Performance Line Smart System motor. The Alpha Smooth Aluminium frame features Motor Armor, a 60mm SR Suntour NVX30 coil fork, and an aluminum suspension seatpost.

Supplied with an Abus 4650XL frame lock, an aluminum MIK luggage rack, SKS mudguards, an adjustable Bontrager stem, a Pletscher Comp Flex 18 kickstand, Herrmans and Spanninga lighting, Shimano MT200 hydraulic disc brakes, and a Bosch Intuvia 100 display, it is finished in Tiefschwarz.

Key Specifications of the Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) 2025

Who This Fits

Riders demanding a low-maintenance, clean-operating electric bike with no chain lubrication requirements benefit from the Gates CDX carbon belt and enclosed Nexus hub. The low-step frame and foot coaster brake provide familiar, confidence-inspiring handling for everyday city riding.

Urban utility riders and leisure cyclists utilize the integrated MIK luggage platform and factory-installed Abus wheel lock for errands. The 75Nm Bosch drive unit delivers strong uphill assistance while the suspension fork and seatpost reduce body fatigue.

Compatibility and Installation

The chassis features a 100mm quick-release front axle and 135x5mm quick-release rear spacing with Post Mount disc brake tabs. The Gates CDX belt requires proper tensioning according to manufacturer parameters during rear wheel adjustments.

The Bosch Intuvia 100 display interfaces wirelessly with the Smart System LED Remote. Fast charging is supported through the included Bosch 4A 230V standard charger.

Before Ordering the Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) 2025

Reference sizing guidelines for low-step models: Small (155 to 168 cm / 5’1″ to 5’6″), Medium (168 to 180 cm / 5’6″ to 5’11”), Large (178 to 190 cm / 5’10” to 6’3″), and XL (188 to 200 cm / 6’2″ to 6’7″). Ensure you choose the appropriate Bosch PowerPack size (545Wh vs 725Wh) based on your route distance and storage weight preferences.

Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) 2025 Specs

BrandDiamant
FrameAlpha Smooth Aluminium, Removable Integrated Battery, interne Zugfhrung, Motor Armor, Post Mount-Scheibenbremsaufnahme, 135 x 5 mm Schnellspannachse Color: Tiefschwarz
ForkSR Suntour NVX30, Spiralfeder, verstellbare Federvorspannung, 100-mm-Schnellspannachse, 60 mm Federweg Travel: 60mm Spring Type: Coil
HeadsetIntegrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
StemBontrager Aluminium, 31,8 mm, verstellbar, Blendr-kompatibel
HandlebarAlloy, 31.8mm clamp, 25mm rise
SaddleSelle Royal Nuvola
SeatpostAluminium, gefedert, 31,6 mm, 300 mm Lnge Type: Rigid
Pedalsrutschfeste Pedale mit Reflektoren
CrankProWheel, Aluminium, 170 mm Kurbelarmlnge
ShiftersShimano Nexus C7000, 5fach
CassetteGates CDX, 36 Z., Stahl
ChainGates CDX, 130 Z.
BrakesHydraulische Scheibenbremse Shimano MT200 // Hydraulische Scheibenbremse Shimano MT200 Shimano RT30, Centerlock-Scheibenaufnahme, 180 mm // Shimano RTC60, 6-Loch, 160 mm Type: Shimano Nexus Hydraulic Disc
RimsBontrager Connection, Hohlkammerfelge, 32-Loch, 20 mm Innenweite, Presta-Ventil Shimano QC300, Centerlock Shimano Nexus 5-Gang-Nabenschaltung mit Centerlock-Bremsscheibenaufnahme und Rcktrittbremse, 32-Loch
MotorBosch Performance Line, 250 W, 75 Nm, 25 km/h
BatteryBosch Powerpack 545 / 725, Smart System
DisplayBosch Intuvia 100, Smart System
ChargerBosch Standardladegert 4 A, 230 V, Smart System
LightsFront: Herrmans H-Black MR4-E, 120lumen, 40lux, LED, Rear: Spanninga SOLO for e-bike, LED
FendersSKS Kunststoff, hinten // SKS Kunststoff, vorne
RacksMIK-Gepcktrger aus Aluminium
LockAbus 4650XL
StandPletscher Comp Flex 18

Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) 2025 Included:

  • Integrated Bosch PowerPack 545Wh battery.
  • Bosch 4A charger and power cable.
  • Battery lock keys and code card.
  • Bosch Intuvia 100 display unit.
  • Integrated front and rear LED lights.
  • Pre-installed carrier, mudguards, and kickstand.
  • Pre-installed frame lock with keys.
  • Platform pedals, reflectors, and bell.
  • Hydraulic disc brake pad transport retainers.
  • Bicycle manuals and manufacturer warranty card.

Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) General Questions

Q: How does the Gates carbon belt drive combine with the coaster hub?

A: The Diamant Beryll Esprit RT Gen 3 (Einstieg: tief) pairs a Gates CDX carbon belt with a 5-speed Shimano Nexus coaster brake hub. The carbon belt operates completely dry without oil lubrication, delivering whisper-quiet power transfer and zero grease stains with intuitive backpedal braking.

Q: Why choose the Beryll Esprit RT Gen 3 over chain-driven city e-bikes?

A: The rust-free belt drive and enclosed internal hub eliminate chain drops and derailleur maintenance, while the low-step frame allows easy mounting.

Q: What internal hub, battery capacity, and brake system come standard?

A: The build features a dedicated 5-speed Nexus hub, a 75Nm Bosch Performance Line motor, a 400Wh–800Wh battery, and Shimano hydraulic disc brakes.

Q: Can you shift gears while stopped at street traffic intersections?

A: Yes. Because internal hub gears shift without pedaling, you can select first gear while stationary at red lights for an easy start up to 136 kg.
